Lamp-Side Marker-Left Front

Component ID: 206

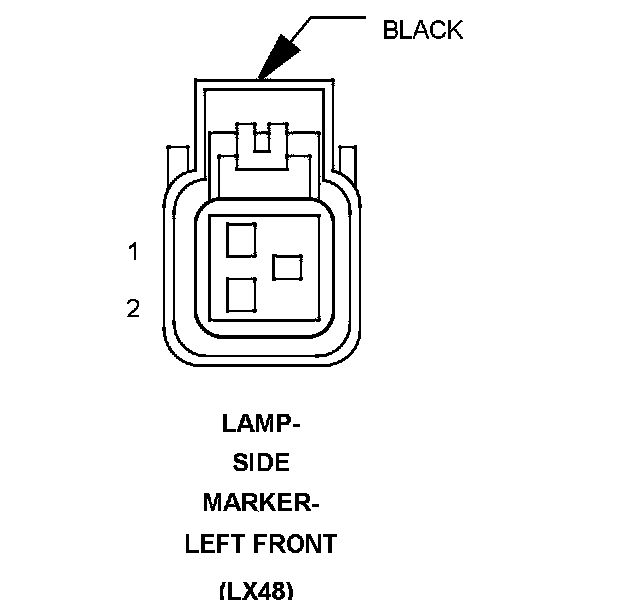

Component : LAMP-SIDE MARKER-LEFT FRONT

Connector:
Name : LAMP-SIDE MARKER-LEFT FRONT
Color : BLACK
# of pins : 2
Qualifier : (LX48)




Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z902 20BK/BR GROUND

Component Location - 5
