Lamp-Side Marker-Right Front

Component ID: 208

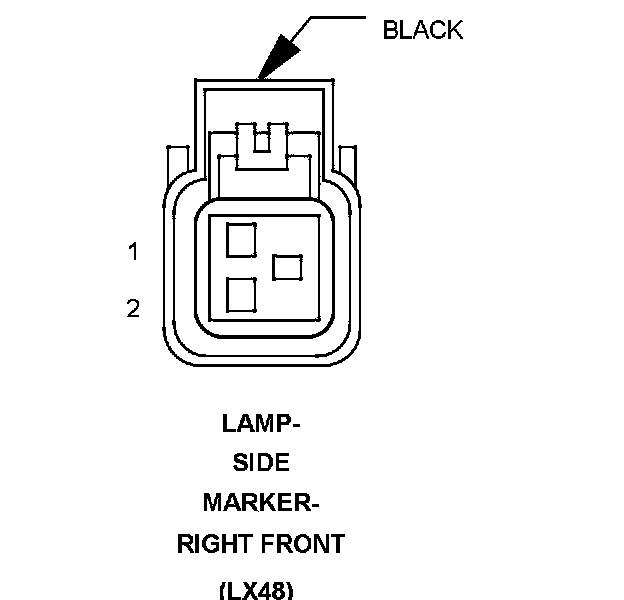

Component : LAMP-SIDE MARKER-RIGHT FRONT

Connector:
Name : LAMP-SIDE MARKER-RIGHT FRONT
Color : BLACK
# of pins : 2
Qualifier : (LX48)




Pin Circuit Description
1 L777 20WT/VT PARK LAMP CONTROL OUTPUT
2 Z901 20BK/TN GROUND

Component Location - 5
