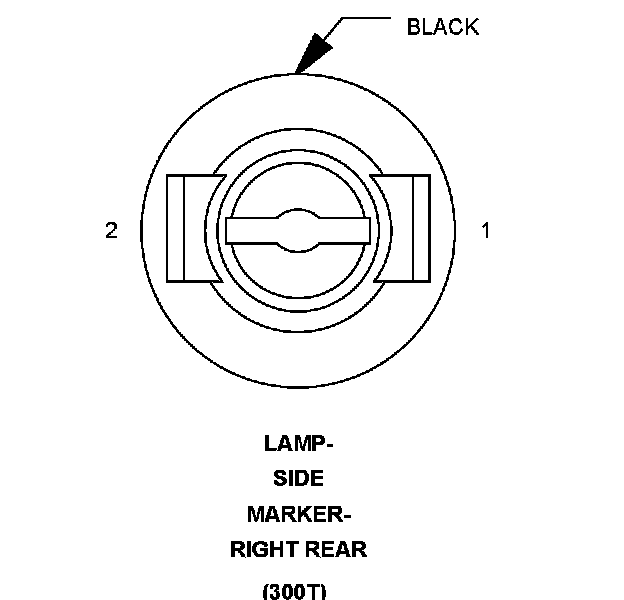

Lamp-Side Marker-Right Rear

Component ID: 209
Component : LAMP-SIDE MARKER-RIGHT REAR

Connector:
Name : LAMP-SIDE MARKER-RIGHT REAR
Color : BLACK
# of pins : 2
Qualifier : (300T)




Pin Circuit Description
1 Z914 18BK/GY GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT

Component Location - 85
