Pedal Positioning Motor

Component ID: 268
Component : MOTOR-ADJUSTABLE PEDALS

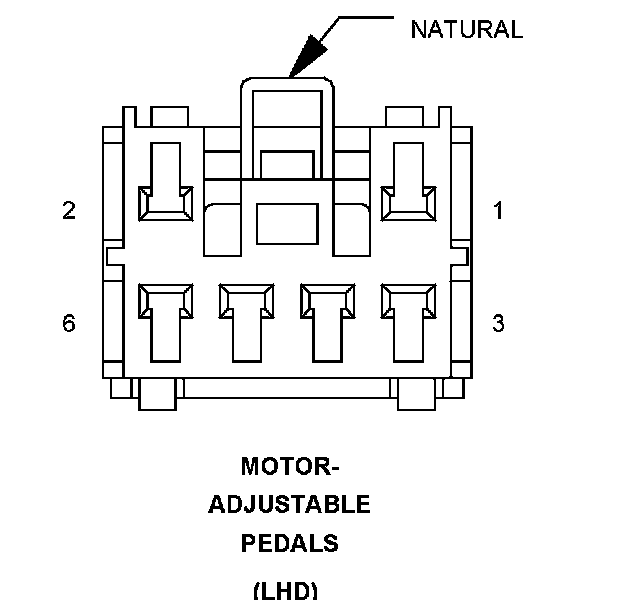

Connector:
Name : MOTOR-ADJUSTABLE PEDALS
Color : NATURAL
# of pins : 6
Qualifier : (LHD)




Pin Circuit Description
1 P206 20LG/LB ADJUSTABLE PEDALS MOTOR REARWARD
Pin Circuit Description
1 P206 16LG/LB ADJUSTABLE PEDALS MOTOR REARWARD
2 P205 20LG/WT ADJUSTABLE PEDALS MOTOR FORWARD
2 P205 16LG/WT ADJUSTABLE PEDALS MOTOR FORWARD
3 - -
4 - -
5 - -
6 - -

Component Location - 52
