Connector-Police Accessories

Component ID: 82
Component : CONNECTOR-POLICE ACCESSORIES

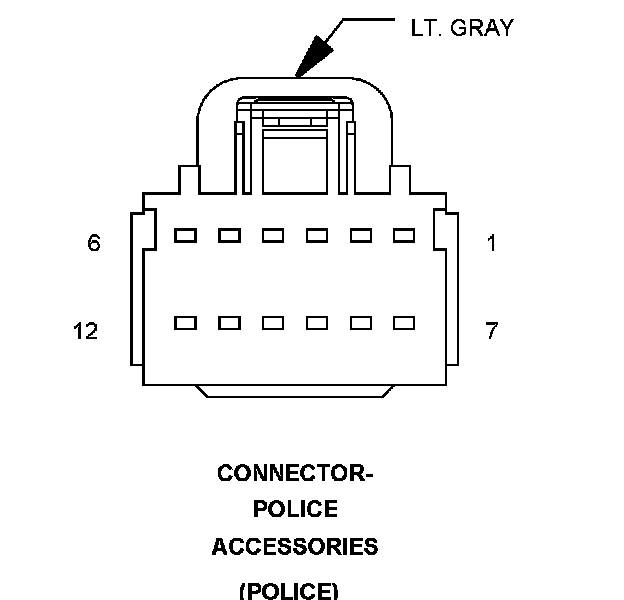

Connector:
Name : CONNECTOR-POLICE ACCESSORIES
Color : LT. GRAY
# of pins : 12
Qualifier : (POLICE)




Pin Circuit Description
1 A100 16RD/WT FUSED B(+)
2 A101 16VT/RD FUSED B(+)
3 A102 16WT/RD FUSED B(+)
4 F100 16PK/VT POLICE 1 RELAY OUTPUT
5 F101 16VT/PK POLICE 3 RELAY OUTPUT
6 F102 16WT/PK POLICE 2 RELAY OUTPUT
7 Z950 18BK/TN POLICE ACCESSORIES WIRE 1
8 Z951 18BK/WT POLICE ACCESSORIES WIRE 2
9 Z952 18BK/OR POLICE ACCESSORIES WIRE 3
10 Z953 18BK/LG POLICE ACCESSORIES WIRE 4
11 Z954 18BK/RD POLICE ACCESSORIES WIRE 5
12 Z955 18BK/DB POLICE ACCESSORIES WIRE 6

Component Location - 52
