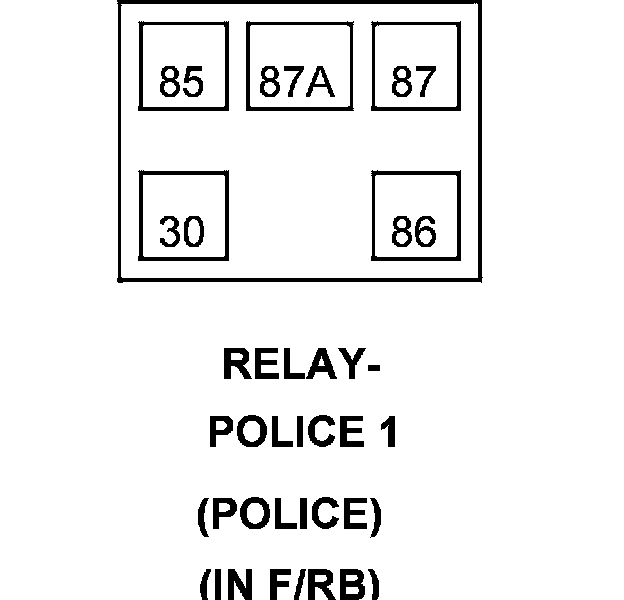

Relay-Police 1

Component ID: 307
Component : RELAY-POLICE 1

Connector:
Name : RELAY-POLICE 1
Color :
# of pins : 5
Qualifier : (POLICE)




30 F3 16YL/RD FUSED B(+)
85 Z911 20BK/WT GROUND
86 F880 22PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
87 F100 16PK/VT POLICE 1 RELAY OUTPUT
87A - -
