Latch-Door-Driver

Component ID: 230

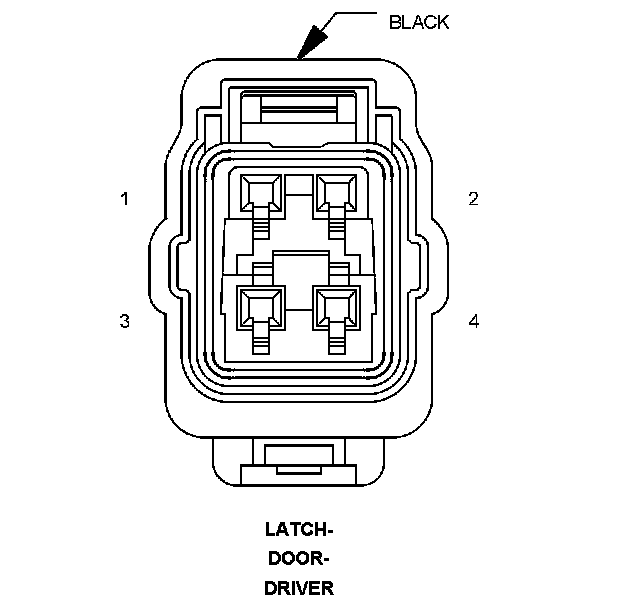

Component : LATCH-DOOR-DRIVER

Connector:
Name : LATCH-DOOR-DRIVER
Color : BLACK
# of pins : 4




Pin Circuit Description
1 G75 22VT DRIVER DOOR AJAR SWITCH SENSE
2 Z912 20BK/OR GROUND
3 P1 22TN/LG DRIVER DOOR UNLOCK DRIVER
4 P393 22LG DOOR LOCK DRIVER

Component Location - 62
