Latch-Door-Passenger

Component ID: 233

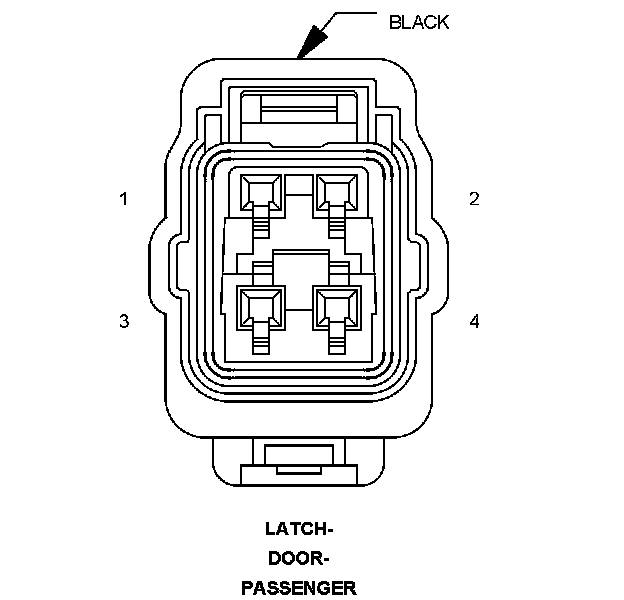

Component : LATCH-DOOR-PASSENGER

Connector:
Name : LATCH-DOOR-PASSENGER
Color : BLACK
# of pins : 4




Pin Circuit Description
1 G74 22VT/WT PASSENGER DOOR AJAR SWITCH SENSE
2 Z911 20BK/WT GROUND
3 P303 22TN PASSENGER DOOR UNLOCK DRIVER
4 P392 22LG/DB DOOR LOCK DRIVER

Component Location - 62
