Motor-Seat Adjuster-Driver Recliner

Component ID: 274
Component : MOTOR-SEAT ADJUSTER-DRIVER RECLINER

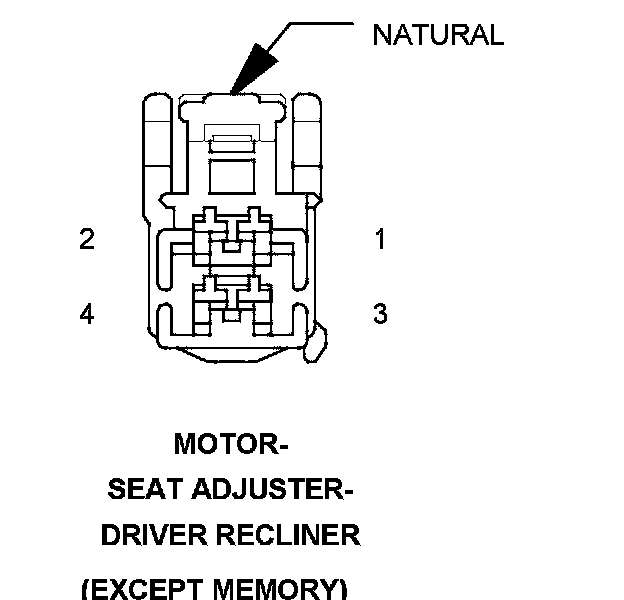

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER RECLINER
Color : NATURAL
# of pins : 4
Qualifier : (EXCEPT MEMORY)




Pin Circuit Description
1 P43 18LG/VT DRIVER SEAT RECLINER UP DRIVER
2 P41 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
3 - -
4 - -

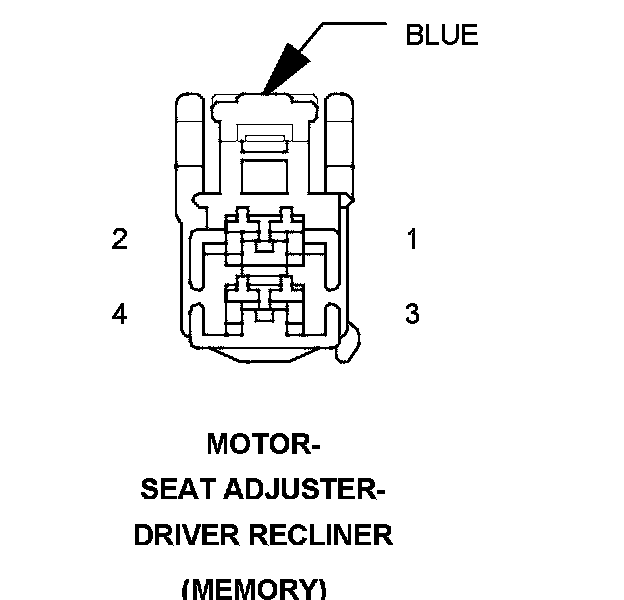

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER RECLINER
Color : BLUE
# of pins : 4
Qualifier : (MEMORY)




Pin Circuit Description
1 P143 18LG/GY DRIVER SEAT RECLINER DOWN DRIVER
2 P141 18LG/BR DRIVER SEAT RECLINER UP DRIVER
3 G493 20OR/VT DRIVER SEAT RECLINER POSITION SENSOR GROUND
4 G403 20VT/OR DRIVER SEAT RECLINER POSITION SENSE
