Motor-Window-Right Rear

Component ID: 288

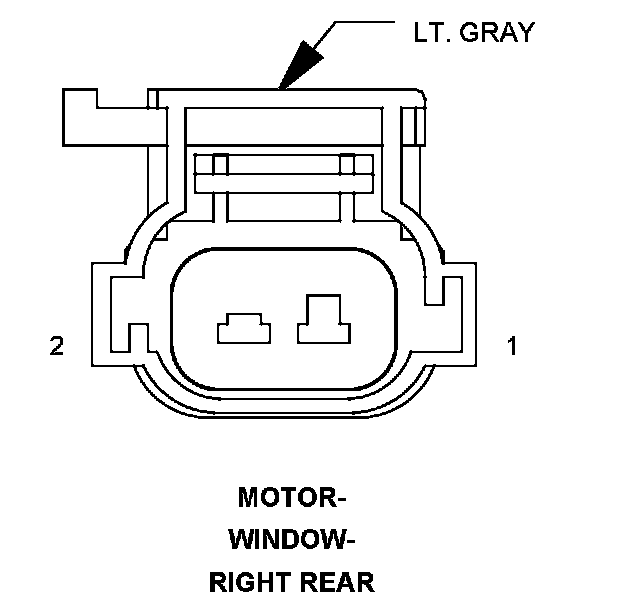

Component : MOTOR-WINDOW-RIGHT REAR

Connector:
Name : MOTOR-WINDOW-RIGHT REAR
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 Q212 16OR/VT RIGHT REAR WINDOW DRIVER (DOWN)
2 Q112 16OR/BR RIGHT REAR WINDOW DRIVER (UP)

Component Location - 63
