Relay-Radiator Fan High/Low Control

Component ID: 315

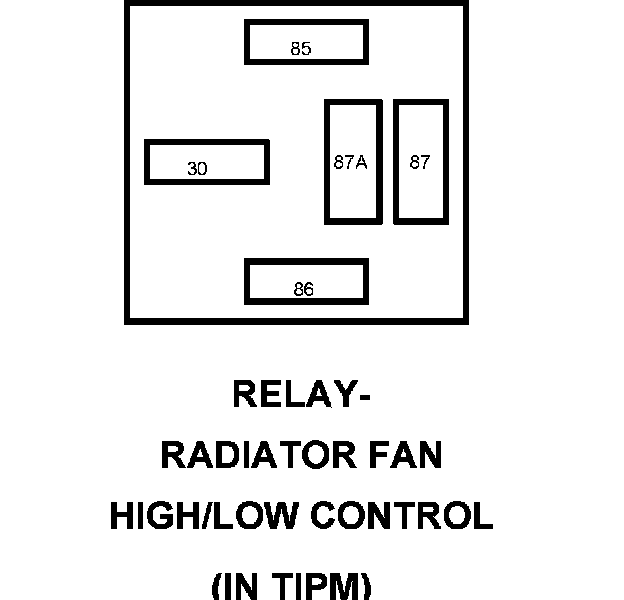

Component : RELAY-RADIATOR FAN HIGH/LOW CONTROL

Connector:
Name : RELAY-RADIATOR FAN HIGH/LOW CONTROL
Color :
# of pins : 5




30 N210 12DB/DG RAD FAN HIGH/LOW CONTROL FEED
85 INTERNAL FUSED B(+)
86 INTERNAL RAD FAN HIGH RELAY CONTROL
87 Z901 12BK/DG GROUND
87A INTERNAL RAD FAN HIGH/LOW CONTROL OUTPUT
