Refrigerant Pressure Sensor / Switch, HVAC

Component ID: 596
Component : TRANSDUCER-A/C PRESSURE

Connector:

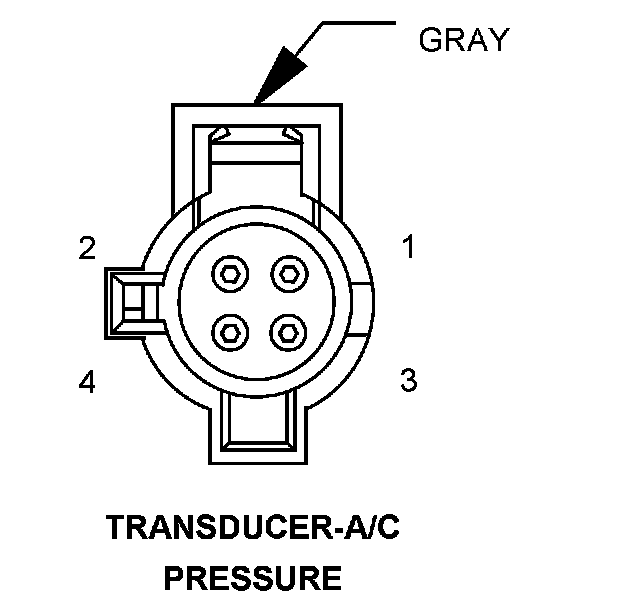

Name : TRANSDUCER-A/C PRESSURE
Color : GRAY
# of pins : 4




Pin Circuit Description
1 C918 20BK/LB A/C PRESSURE SENSOR GROUND
2 F891 20PK/GY 5 VOLT SUPPLY
3 C18 20LB/BR A/C PRESSURE TRANSDUCER SIGNAL
4 - -

Component Location - 31




Component Location - 8




Component Location - 9
