Seat Belt Buckle Switch

Component ID: 584

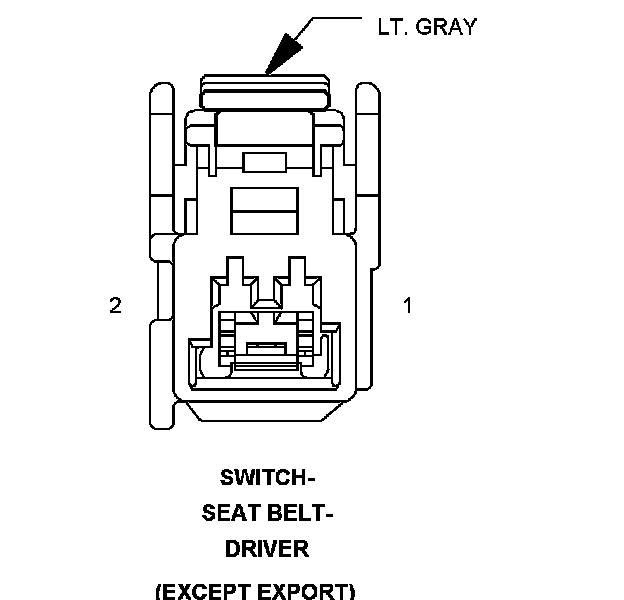

Component : SWITCH-SEAT BELT-DRIVER

Connector:
Name : SWITCH-SEAT BELT-DRIVER
Color : LT. GRAY
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 Z912 20BK/OR GROUND
2 R57 20LG/GY DRIVER SEAT BELT SWITCH SENSE

Component Location - 54




Component Location - 50
