Heater-Seat Back-Left Rear

Component ID: 156

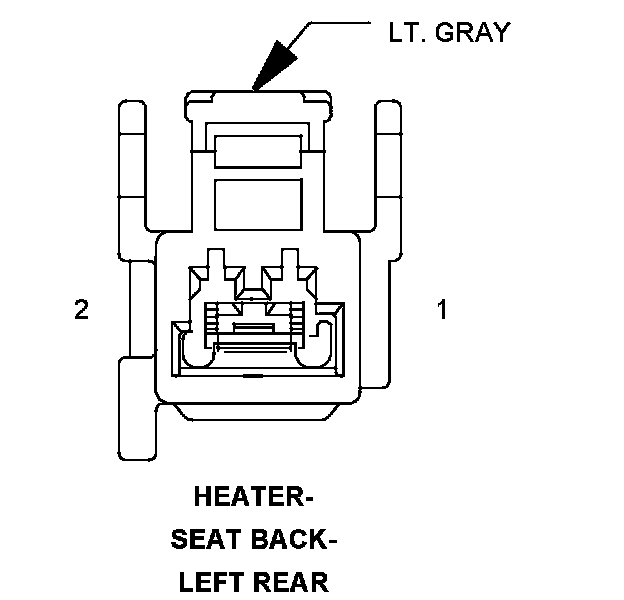

Component : HEATER-SEAT BACK-LEFT REAR

Connector:
Name : HEATER-SEAT BACK-LEFT REAR
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 P177 20RD LEFT REAR SEAT HEATER B(+) DRIVER
2 Z911 20BK GROUND

Component Location - 58
