Heater-Seat Back-Right Rear

Component ID: 158
Component : HEATER-SEAT BACK-RIGHT REAR

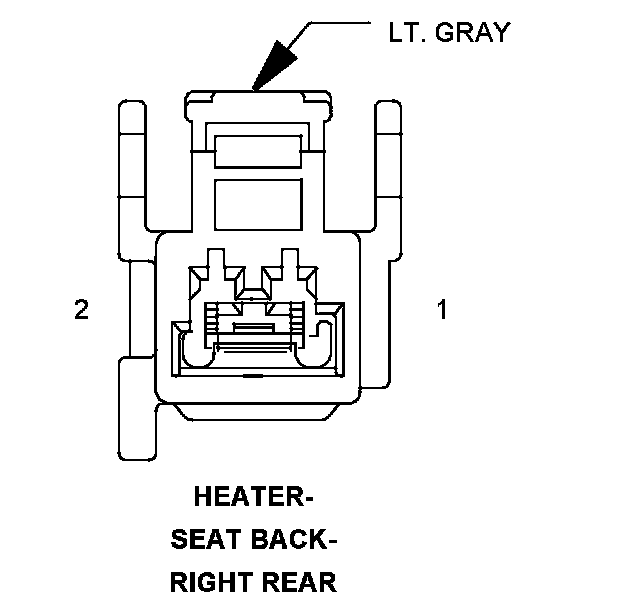

Connector:
Name : HEATER-SEAT BACK-RIGHT REAR
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 P178 20RD RIGHT REAR SEAT HEATER B(+) DRIVER
2 Z911 20BK GROUND

Component Location - 57




Component Location - 58
