Heater-Seat Cushion-Left

Component ID: 159

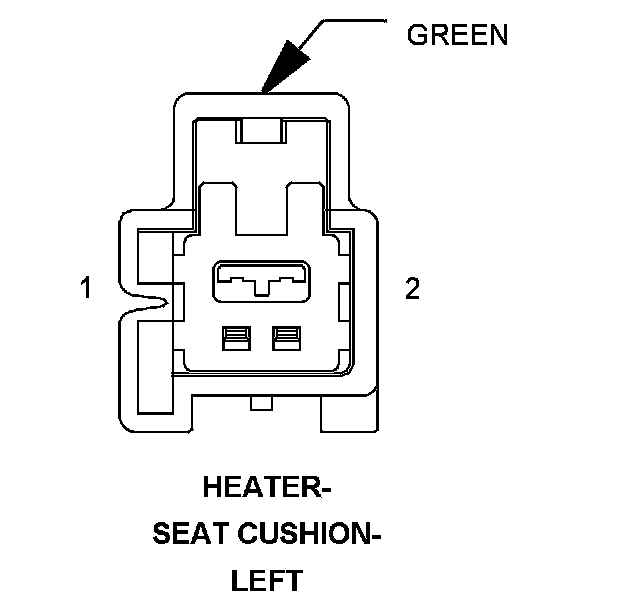

Component : HEATER-SEAT CUSHION-LEFT

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2




Pin Circuit Description
1 P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
2 Z912 20BK/OR GROUND
2 Z911 20BK/OR GROUND

Component Location - 54
