Heater-Seat Cushion-Right

Component ID: 161
Component : HEATER-SEAT CUSHION-RIGHT

Connector:

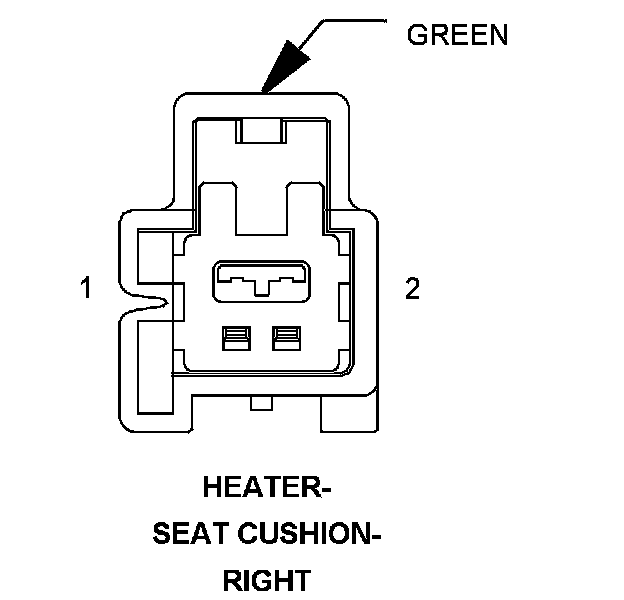

Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2




Pin Circuit Description
1 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 Z911 20BK/WT GROUND
2 Z912 20BK/OR GROUND

Component Location - 55






Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2




Pin Circuit Description
1 P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER
2 Z911 20BK/WT GROUND
2 Z912 20BK/OR GROUND

Component Location - 55
