Speaker-Instrument Panel-Center

Component ID: 555

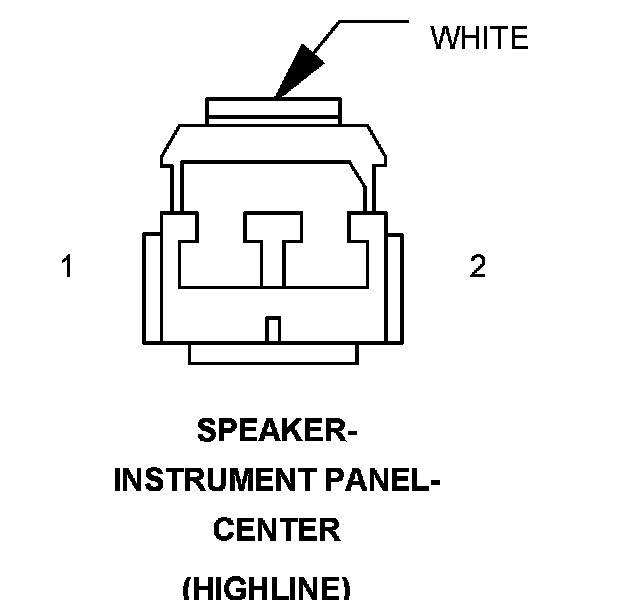

Component : SPEAKER-INSTRUMENT PANEL-CENTER

Connector:
Name : SPEAKER-INSTRUMENT PANEL-CENTER
Color : WHITE
# of pins : 2
Qualifier : (HIGHLINE/MIDLINE II)




Pin Circuit Description
1 X200 18GY/BR AMPLIFIED CENTER I/P SPEAKER (+)
2 X290 18GY/OR AMPLIFIED CENTER I/P SPEAKER (-)

Component Location - 44




Component Location - 36




Component Location - 37
