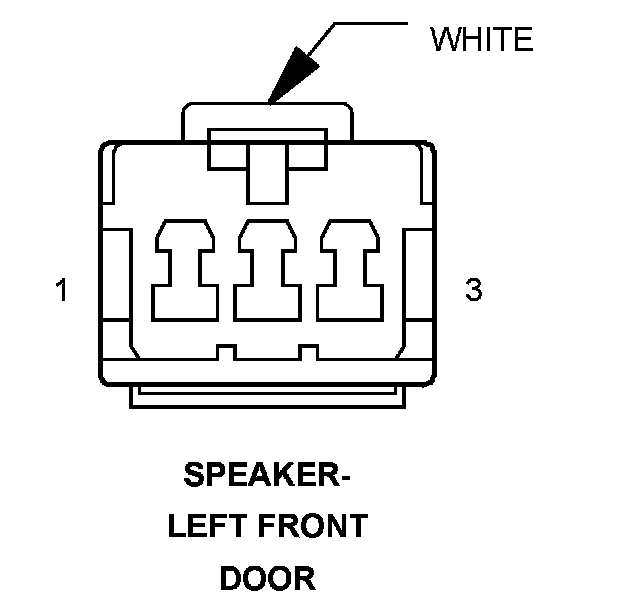

Speaker-Left Front Door

Component ID: 558
Component : SPEAKER-LEFT FRONT DOOR

Connector:
Name : SPEAKER-LEFT FRONT DOOR
Color : WHITE
# of pins : 3




Pin Circuit Description
1 X291 18GY/YL LEFT FRONT DOOR SPEAKER (-)
Pin Circuit Description
1 X291 18GY/YL AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
2 - -
3 X201 18GY/VT LEFT FRONT DOOR SPEAKER (+)
3 X201 18GY/VT AMPLIFIED LEFT FRONT DOOR SPEAKER (+)

Component Location - 62
