Lamp-Tail Stop/Park-Left

Component ID: 216

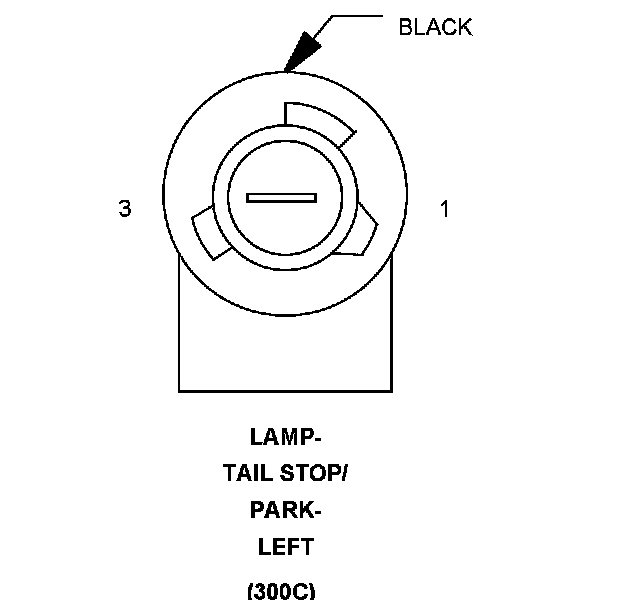

Component : LAMP-TAIL STOP/PARK-LEFT

Connector:
Name : LAMP-TAIL STOP/PARK-LEFT
Color : BLACK
# of pins : 3
Qualifier : (300C)




Pin Circuit Description
1 Z914 18BK/GY GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L53 18DG/WT BRAKE LAMP RELAY OUTPUT

Component Location - 87
