Lamp-Tail/Stop-Left

Component ID: 222

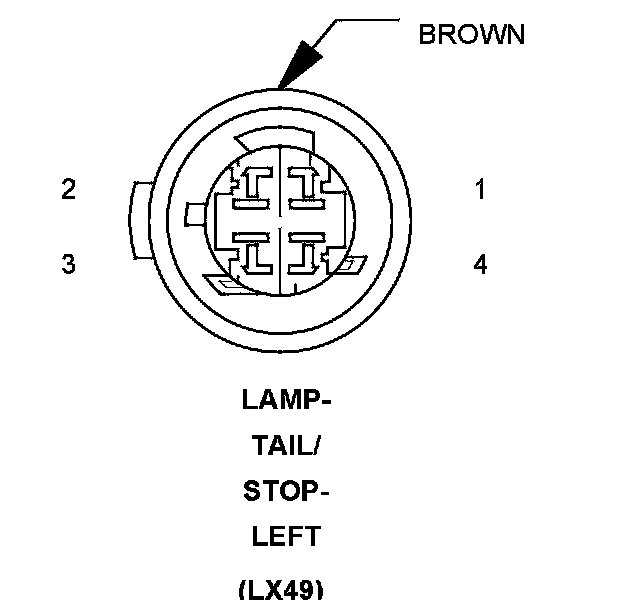

Component : LAMP-TAIL/STOP-LEFT

Connector:
Name : LAMP-TAIL/STOP-LEFT
Color : BROWN
# of pins : 4
Qualifier : (LX49)




Pin Circuit Description
1 L777 20BR PARK LAMP CONTROL OUTPUT
2 Z914 20BK GROUND
3 Z914 20BK GROUND
4 L53 20BR/VT BRAKE LAMP RELAY OUTPUT

Component Location - 86
