Telescoping Wheel Motor

Component ID: 281
Component : MOTOR-STEERING TELESCOPE

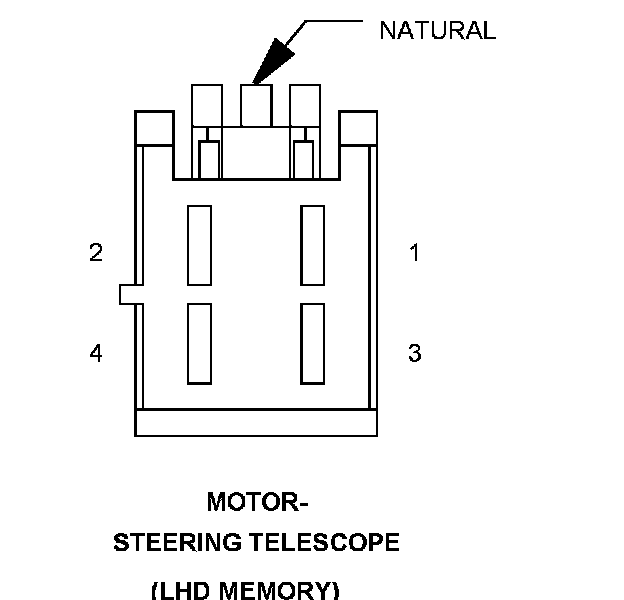

Connector:
Name : MOTOR-STEERING TELESCOPE
Color : NATURAL
# of pins : 4
Qualifier : (LHD MEMORY)




Pin Circuit Description
1 P953 16DG/TN STEERING MOTOR COMMON
2 P157 16LB/TN TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER
3 P152 20TN/LB TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE
4 G914 20VT/GY SENSOR RETURN

Component Location - 36




Component Location - 39
