Television / Monitor

Component ID: 266
Component : MODULE-VIDEO SCREEN

Connector:

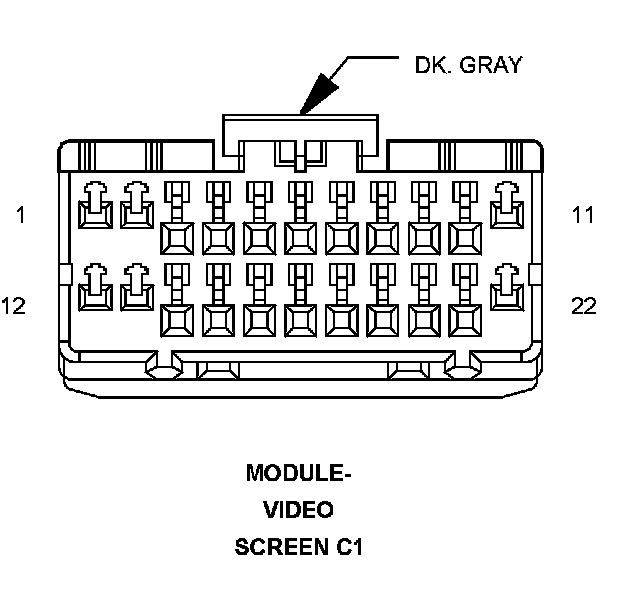

Name : MODULE-VIDEO SCREEN C1
Color : DK. GRAY
# of pins : 22




Pin Circuit Description
1 A300 20RD/OR FUSED B(+) (I.O.D.)
2 X540 22DG AUDIO RETURN 1
3 X545 22DG/LB AUDIO LEFT 2
4 X544 22DG/LG AUDIO RIGHT 2
5 D55 20WT/OR CAN B BUS (+)
6 D54 20WT CAN B BUS (-)
7 X536 22 VIDEO SHIELD 1
8 X551 22DG/GY AUDIO LEFT 3
9 X550 22DG/VT AUDIO RIGHT 3
10 X542 22GY VIDEO COMMON 2
11 X541 22GY/LB VIDEO SIGNAL 2
12 X539 22DG/BK AUDIO LEFT 1
13 X538 22DG/WT AUDIO RIGHT 1
14 X546 22DG/YL AUDIO RETURN 2
15 - -
16 - -
17 - -
18 X534 22GY/BR VIDEO SIGNAL 1
19 X535 22GY VIDEO COMMON 1
20 X552 22DG/BR AUDIO RETURN 3
21 X543 22 VIDEO SHIELD 2
22 Z909 20BK GROUND



Connector:

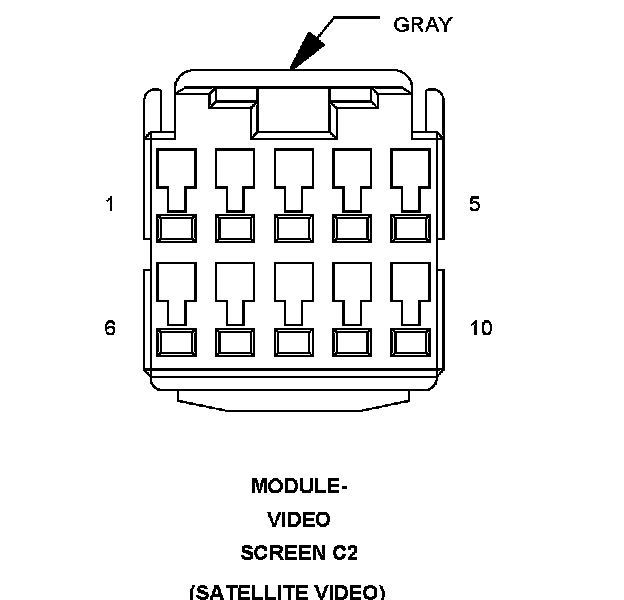

Name : MODULE-VIDEO SCREEN C2
Color : GRAY
# of pins : 10
Qualifier : (SATELLITE VIDEO)




Pin Circuit Description
1 X974 22GY/DG SDARS VIDEO SIGNAL
2 X918 22VT/YL SDARS AUDIO SIGNAL COMMON
3 X19 22VT/LB SDARS LEFT AUDIO SIGNAL
4 - -
5 - -
6 X973 22GY SDARS VIDEO SIGNAL COMMON
7 X975 22 SDARS VIDEO SHIELD
8 X18 22VT/LG SDARS RIGHT AUDIO SIGNAL
9 - -
10 - -
