Tilt Wheel Motor

Component ID: 282
Component : MOTOR-STEERING TILT

Connector:

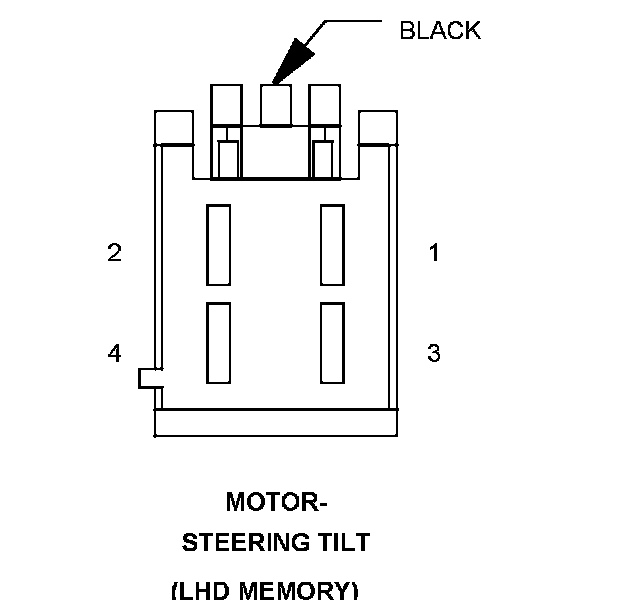

Name : MOTOR-STEERING TILT
Color : BLACK
# of pins : 4
Qualifier : (LHD MEMORY)




Pin Circuit Description
1 P953 16DG/TN STEERING MOTOR COMMON
2 P153 16TN/DG TILT STEERING MOTOR UP/DOWN DRIVER
3 P151 20TN/OR TILT STEERING UP/DOWN POSITION SENSE
4 G914 20VT/GY SENSOR RETURN

Component Location - 36




Component Location - 39
