Transponder-Tire Pressure-Left Front

Component ID: 598
Component : TRANSPONDER-TIRE PRESSURE-LEFT FRONT

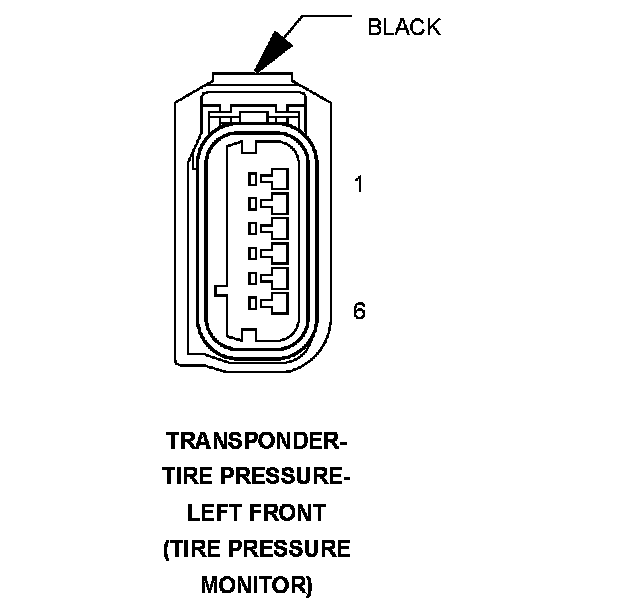

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT FRONT
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Circuit Description
1 F500 20DG/PK FUSED RUN RELAY OUTPUT
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z902 20BK/BR GROUND
3 Z902 20BK/LB GROUND
4 Z902 20BK/BR GROUND
4 Z902 20BK/LB GROUND
5 - -
6 - -

Component Location - 4
