Transponder-Tire Pressure-Right Rear

Component ID: 600

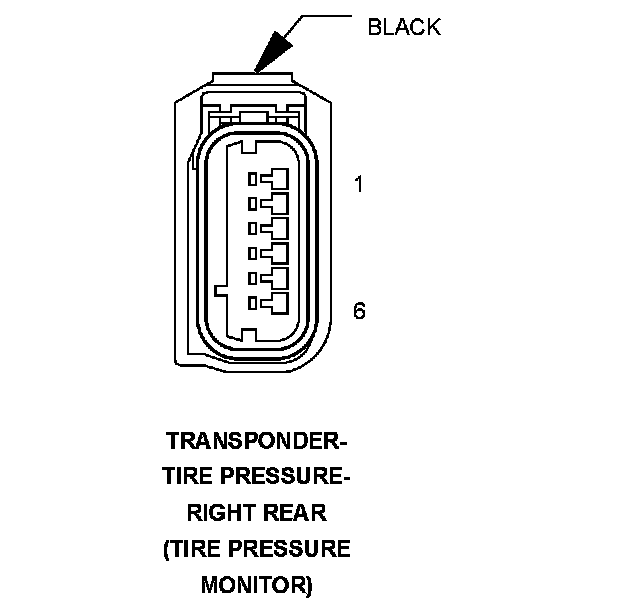

Component : TRANSPONDER-TIRE PRESSURE-RIGHT REAR

Connector:
Name : TRANSPONDER-TIRE PRESSURE-RIGHT REAR
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Circuit Description
1 F500 20DG/PK FUSED RUN RELAY OUTPUT
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z911 20BK/WT GROUND
4 - -
5 - -
6 Z911 20BK/WT GROUND

Component Location - 67




Component Location - 66
