Lamp-Park/Turn-Left Front

Component ID: 203
Component : LAMP-PARK/TURN-LEFT FRONT

Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3
Qualifier : (300/300T/EXPORT)




Pin Circuit Description
1 Z902 18BK/LB GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L61 18WT/LG LEFT FRONT TURN SIGNAL CONTROL

Component Location - 1




Component Location - 4

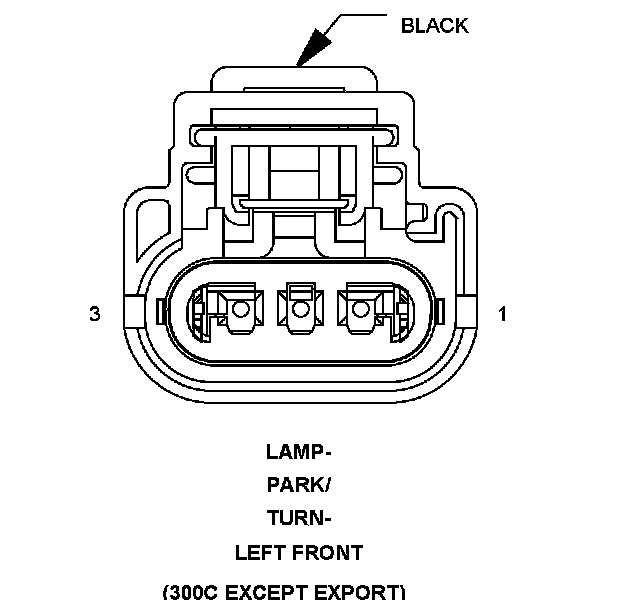

Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3
Qualifier : (300C EXCEPT EXPORT)




Pin Circuit Description
1 Z902 18BK/LB GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L61 18WT/LG LEFT FRONT TURN SIGNAL CONTROL

Component Location - 1




Component Location - 4






Connector:
Name : LAMP-PARK/TURN-LEFT FRONT
Color : BLACK
# of pins : 3
Qualifier : (DODGE)




Pin Circuit Description
1 L61 18WT/LG LEFT FRONT TURN SIGNAL CONTROL
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 Z902 18BK/LB GROUND

Component Location - 1




Component Location - 4
