Lamp-Park/Turn-Right Front

Component ID: 204
Component : LAMP-PARK/TURN-RIGHT FRONT

Connector:
Name : LAMP-PARK/TURN-RIGHT FRONT
Color : BLACK
# of pins : 3

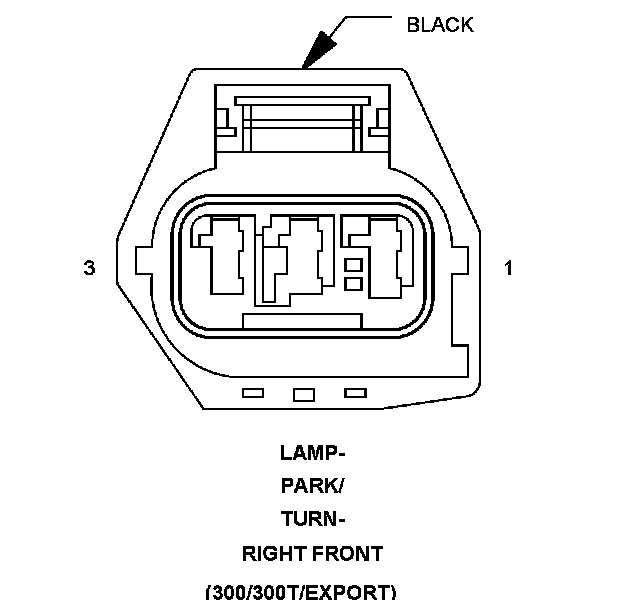

Qualifier : (300/300T/EXPORT)




Pin Circuit Description
1 Z901 18BK/DG GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL CONTROL

Component Location - 1




Component Location - 2






Connector:
Name : LAMP-PARK/TURN-RIGHT FRONT
Color : BLACK
# of pins : 3

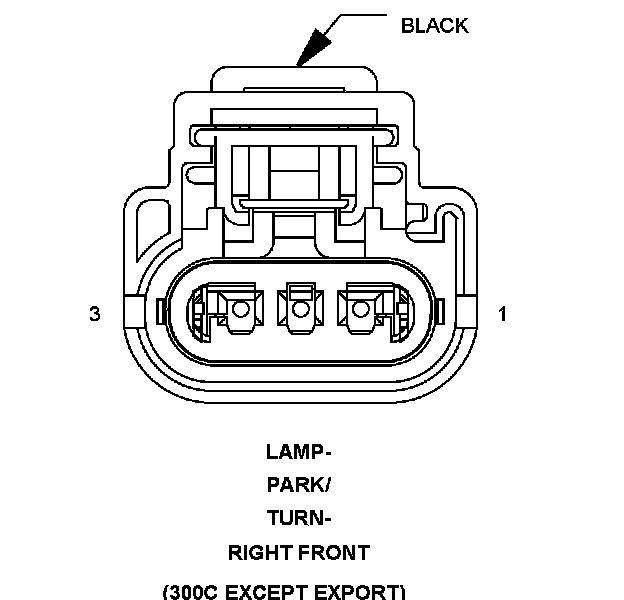

Qualifier : (300C EXCEPT EXPORT)




Pin Circuit Description
1 Z901 18BK/DG GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL CONTROL

Component Location - 1




Component Location - 2






Connector:
Name : LAMP-PARK/TURN-RIGHT FRONT
Color : BLACK
# of pins : 3

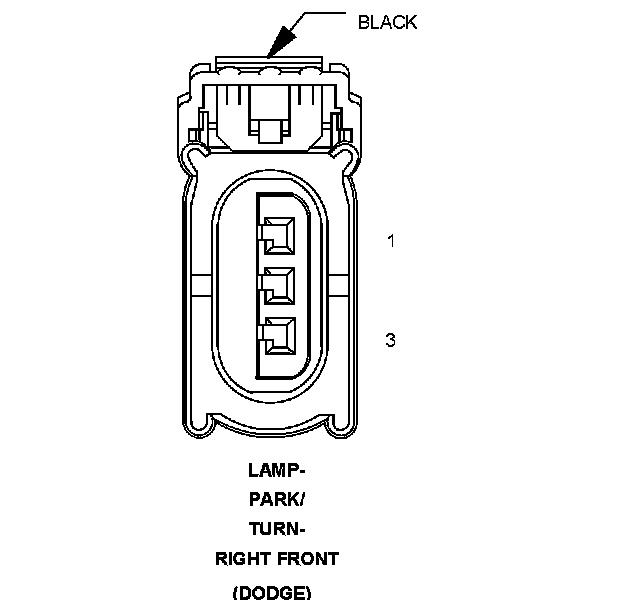

Qualifier : (DODGE)




Pin Circuit Description
1 L60 18WT/TN RIGHT FRONT TURN SIGNAL CONTROL
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 Z901 18BK/DG GROUND

Component Location - 1




Component Location - 2
