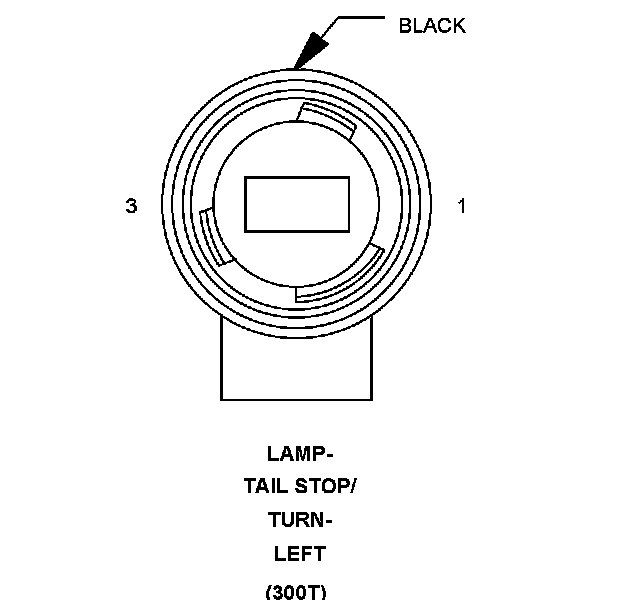

Lamp-Tail Stop/Turn-Left

Component ID: 218
Component : LAMP-TAIL STOP/TURN-LEFT

Connector:
Name : LAMP-TAIL STOP/TURN-LEFT
Color : BLACK
# of pins : 3
Qualifier : (300T)




Pin Circuit Description
1 Z914 18BK/GY GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L63 18WT/DG LEFT REAR TURN SIGNAL CONTROL

Component Location - 85
