Lamp-Tail Stop/Turn-Right

Component ID: 219

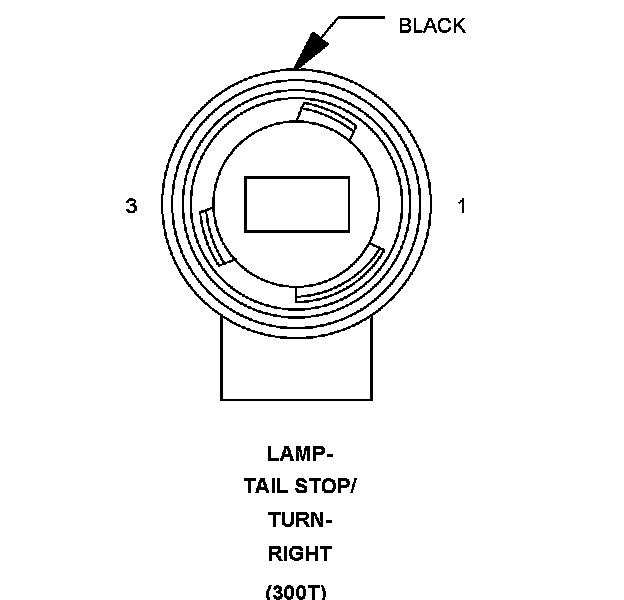

Component : LAMP-TAIL STOP/TURN-RIGHT

Connector:
Name : LAMP-TAIL STOP/TURN-RIGHT
Color : BLACK
# of pins : 3
Qualifier : (300T)




Pin Circuit Description
1 Z914 18BK/GY GROUND
2 L777 18WT/VT PARK LAMP CONTROL OUTPUT
3 L62 18WT/YL RIGHT REAR TURN SIGNAL CONTROL

Component Location - 85
