Lamp-Turn-Right Rear

Component ID: 225

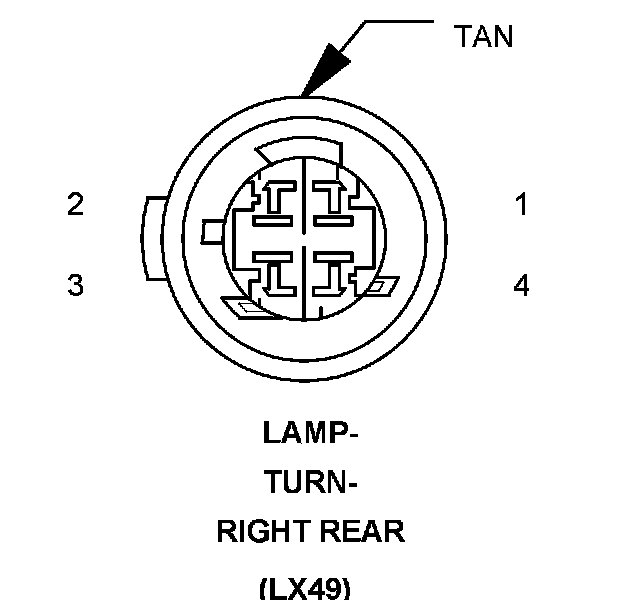

Component : LAMP-TURN-RIGHT REAR

Connector:
Name : LAMP-TURN-RIGHT REAR
Color : TAN
# of pins : 4
Qualifier : (LX49)




Pin Circuit Description
1 - -
2 Z914 20BK GROUND
3 Z914 20BK GROUND
4 L62 18RD/OR RIGHT REAR TURN SIGNAL CONTROL

Component Location - 86
