Lamp-Vanity-Left

Component ID: 227

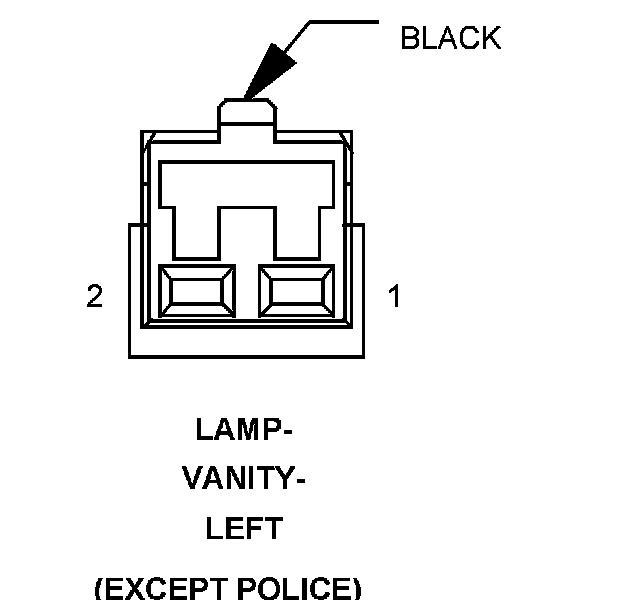

Component : LAMP-VANITY-LEFT

Connector:
Name : LAMP-VANITY-LEFT
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT POLICE)




Pin Circuit Description
1 M27 20YL/LB READING/RAIL LAMPS DRIVER
2 Z909 20BK/LG GROUND

Component Location - 68
