Voice Activation Module

Component ID: 252
Component : MODULE-HANDS FREE

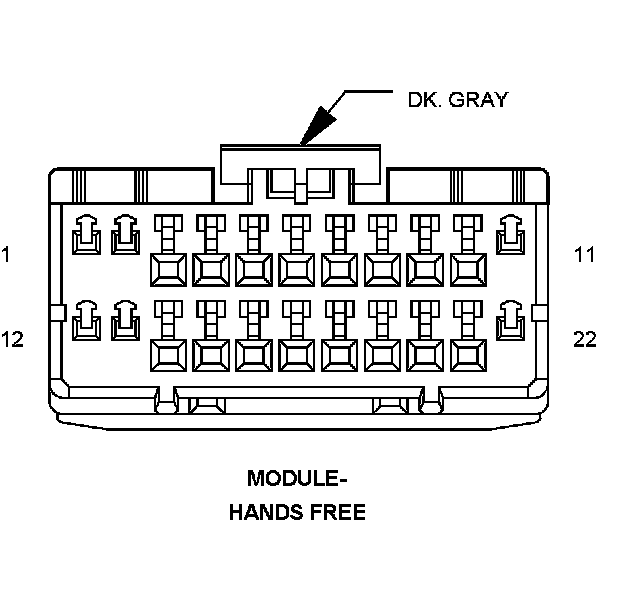

Connector:
Name : MODULE-HANDS FREE C1
Color : DK. GRAY
# of pins : 22




Pin Circuit Description
1 A300 18GY/LG FUSED B(+) (I.O.D.)
2 - -
3 - -
4 D54 20WT CAN B BUS (-)
5 X722 20LB/DG MICROPHONE 2 IN (+)
6 - -
7 - -
8 X703 20DG/OR LEFT AUDIO OUTPUT
9 X704 20DG/YL RIGHT AUDIO OUTPUT
10 X795 20DG COMMON AUDIO OUTPUT
11 - -
12 - -
13 - -
14 D55 20WT/OR CAN B BUS (+)
15 - -
16 X712 20DG/LB MICROPHONE 1 IN (+)
17 X792 20GY MICROPHONE IN (-)
18 - -
19 - -
20 X793 20DG/YL MICROPHONE FEED
21 X835 20OR/GY SENSOR GROUND
22 Z909 18BK/LG GROUND

Component Location - 36




Component Location - 46






Connector:
Name : MODULE-HANDS FREE C2
Color : GRAY
# of pins : 10
Qualifier : (UCI)




Pin Circuit Description
1 X435 20RD UCI AUDIO RIGHT INPUT
2 X437 20 UCI AUDIO REFERENCE
3 X439 20BR UCI ID
4 X440 20YL UCI DEVICE DETECT
5 X441 20PK UCI POWER FEED PASS THROUGH
6 X436 20WT UCI AUDIO LEFT INPUT
7 Z433 20BK GROUND
8 X432 20GY UCI SHIELD
9 X431 20DG UCI EXT RECEIVE
10 X430 20DB UCI EXT TRANSMIT

Component Location - 36




Component Location - 46
