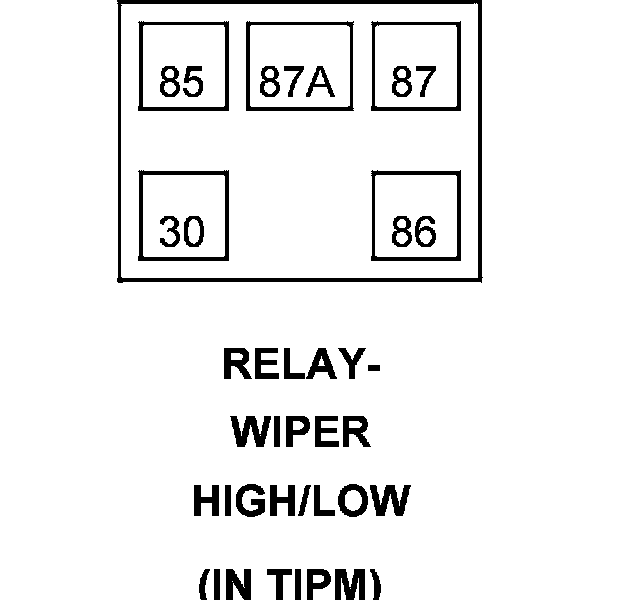

Relay-Wiper High/Low

Component ID: 321
Component : RELAY-WIPER HIGH/LOW

Connector:
Name : RELAY-WIPER HIGH/LOW
Color :
# of pins : 5




30 INTERNAL WIPER ON/OFF MUX SENSE
85 INTERNAL WIPER HIGH/LOW RELAY CONTROL
86 INTERNAL FUSED B(+)
87 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
87A W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
