Group 8W-11 (Fuse/Relay Block)
Group 8W-11 (Fuse/Relay Block)
8w-11-02 (Diesel):

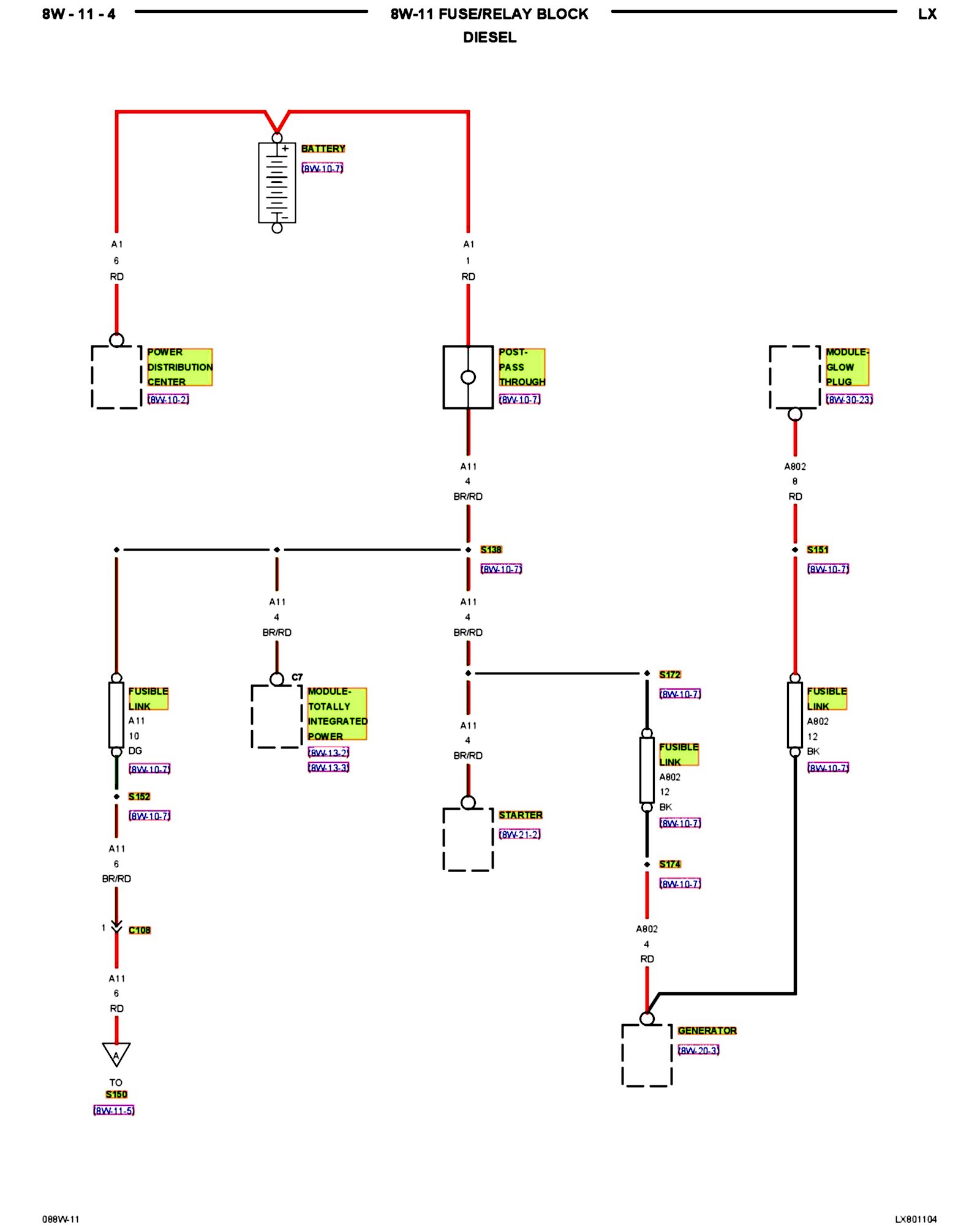

8w-11-04 (Diesel):

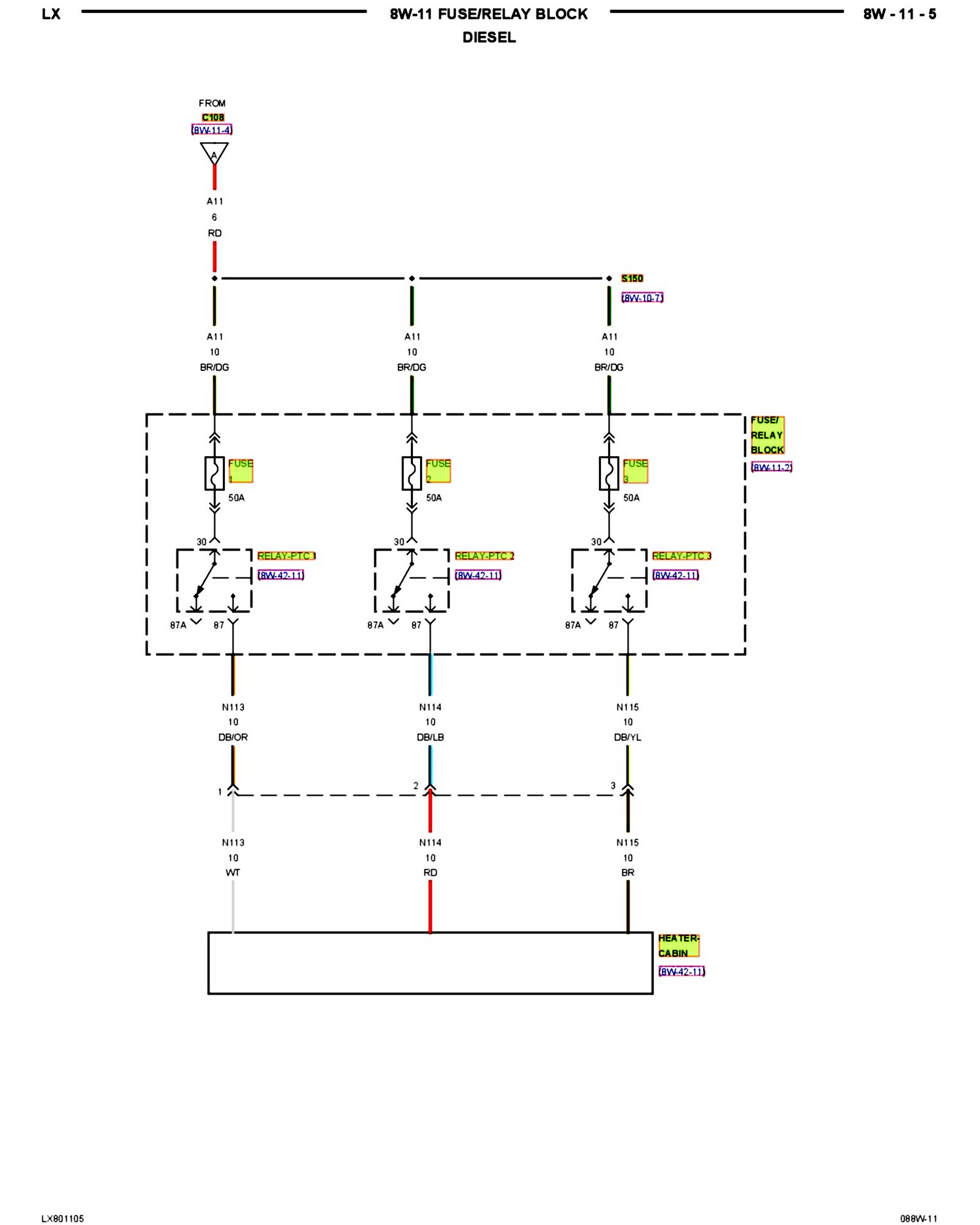

8w-11-05 (Diesel):

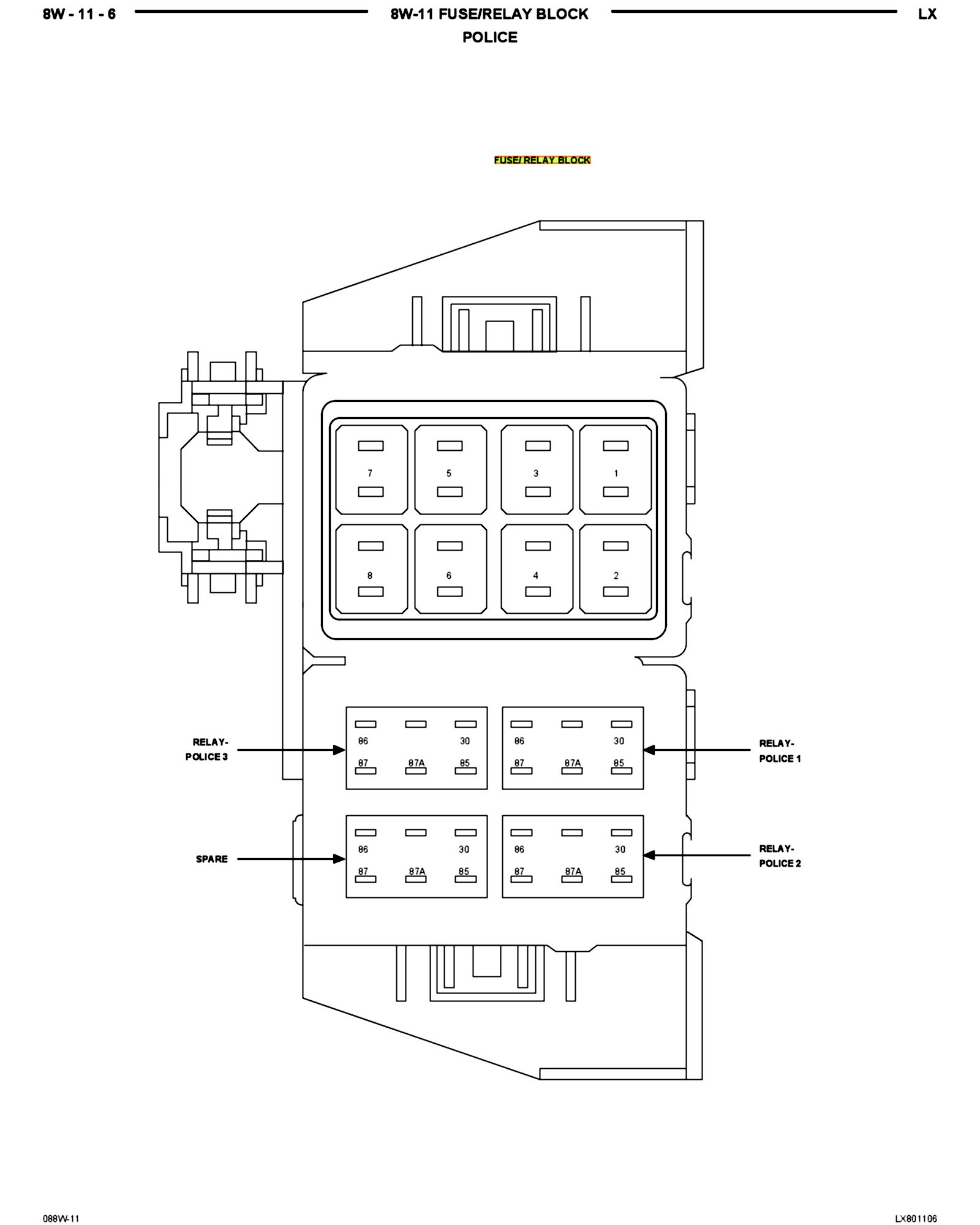

8w-11-06:
8w-11-08:
8w-11-09:
