Group 8W-31 (Transmission Control System)

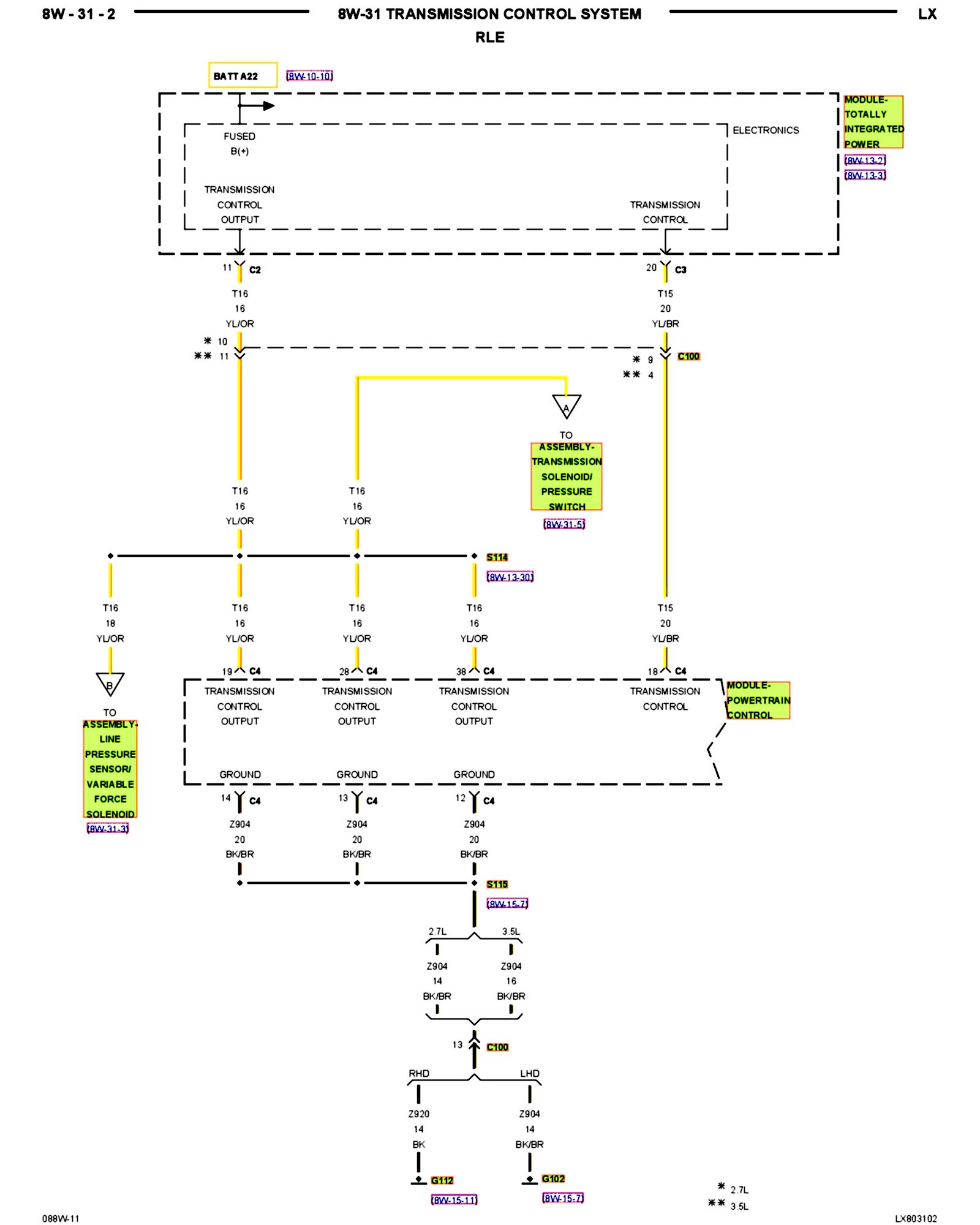

8w-31-02 (RLE):

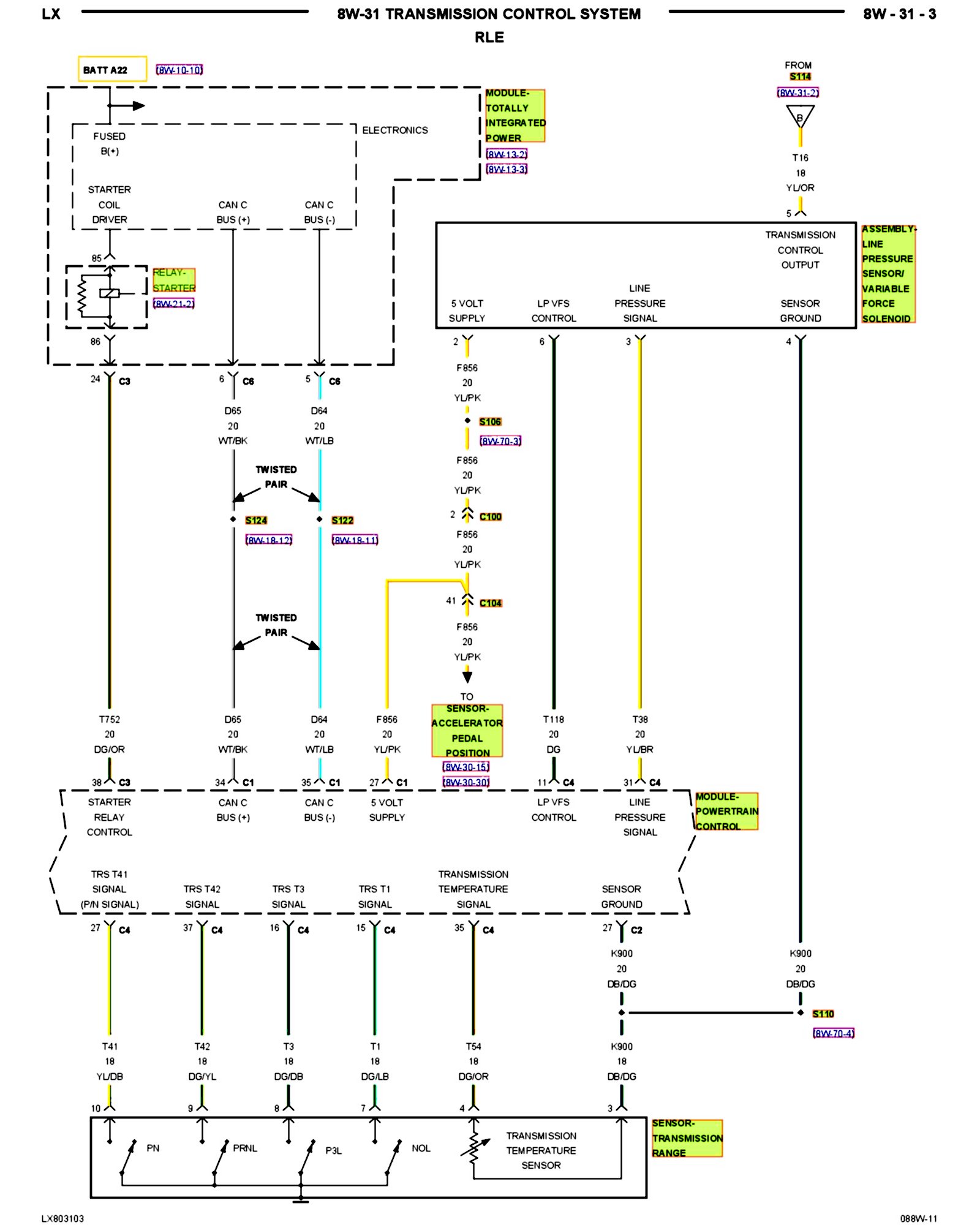

8w-31-03 (RLE):

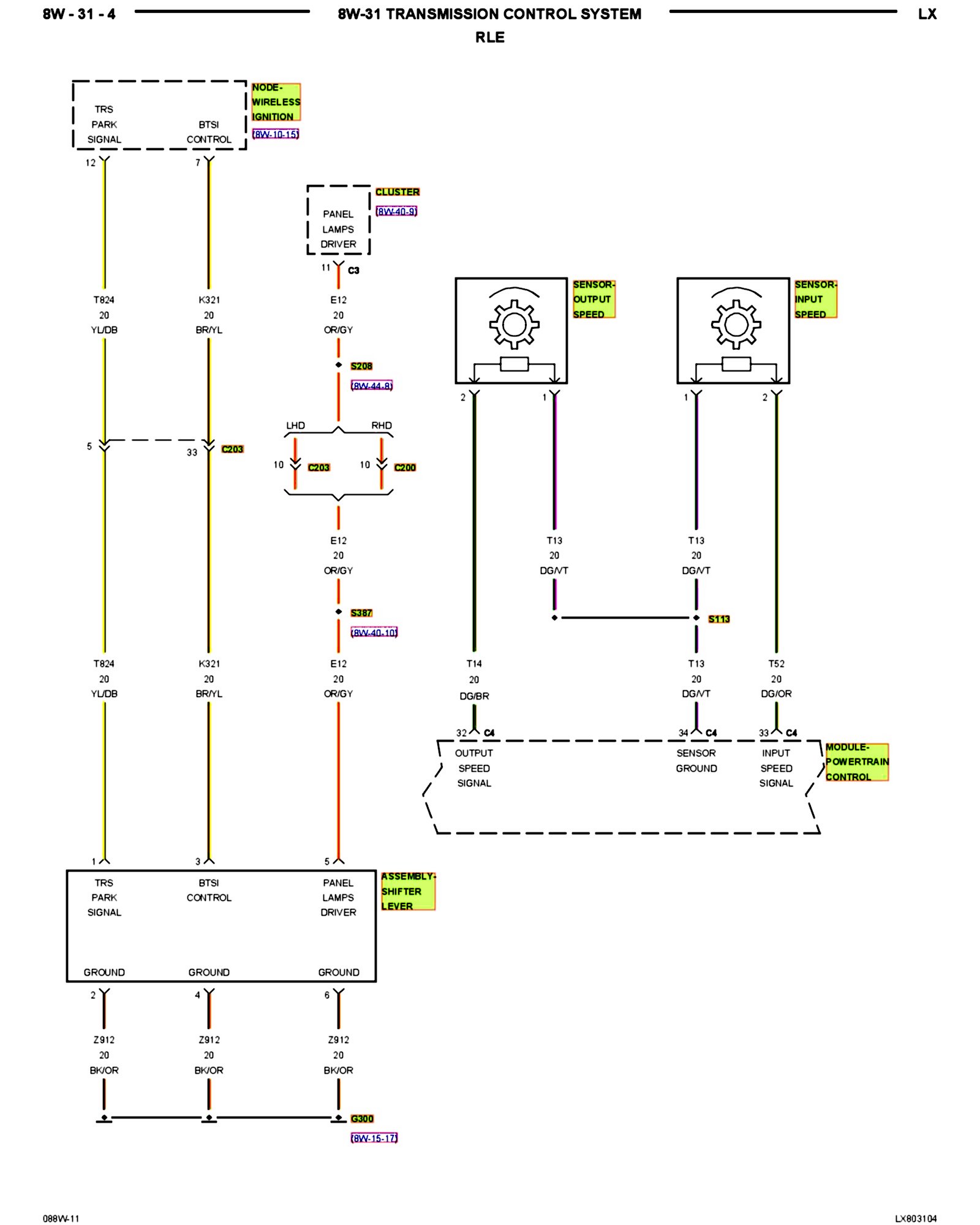

8w-31-04 (RLE):



8w-31-05 (RLE):



8w-31-06 (NAG1):



8w-31-07 (NAG1):

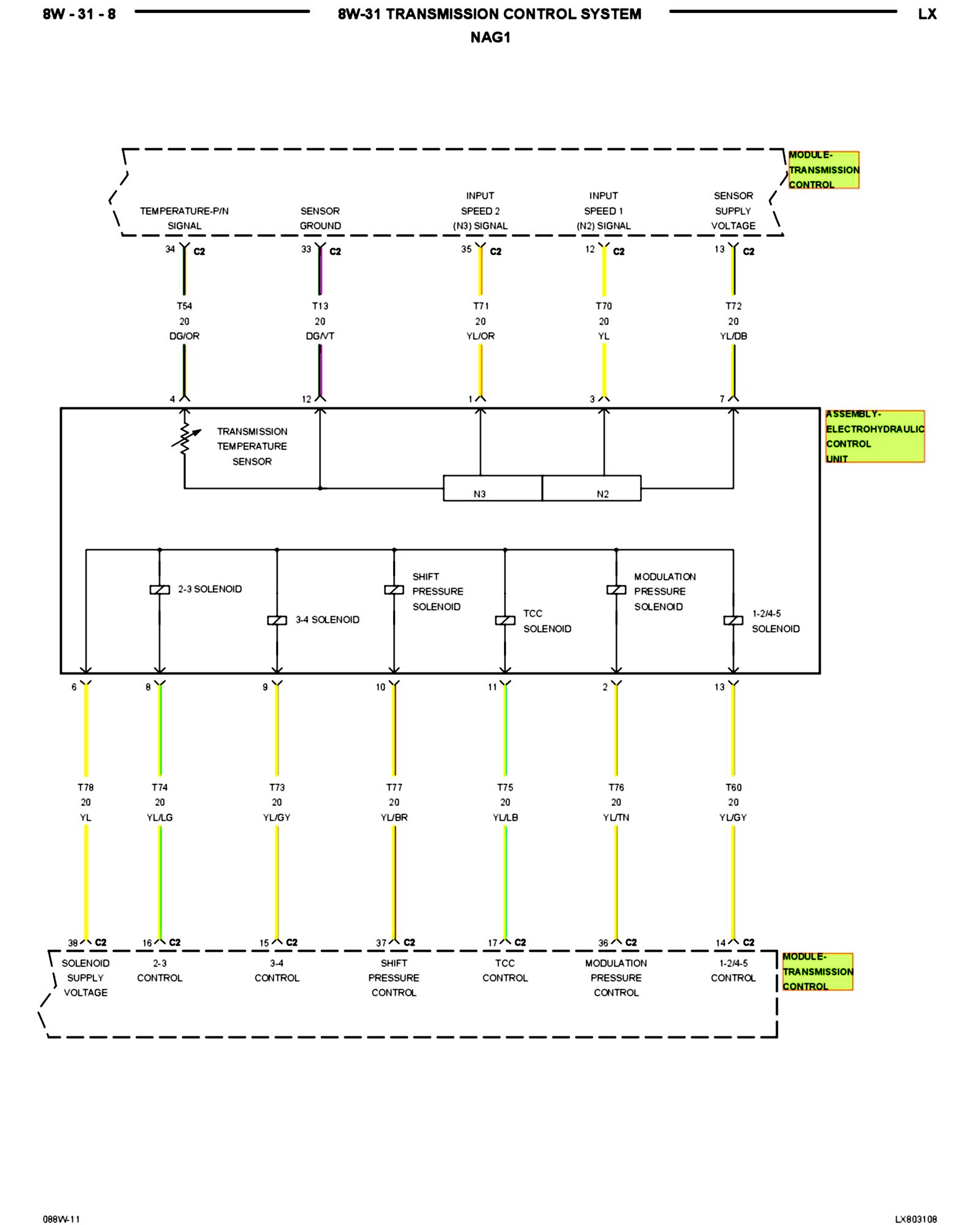

8W-31-08 (NAG1):

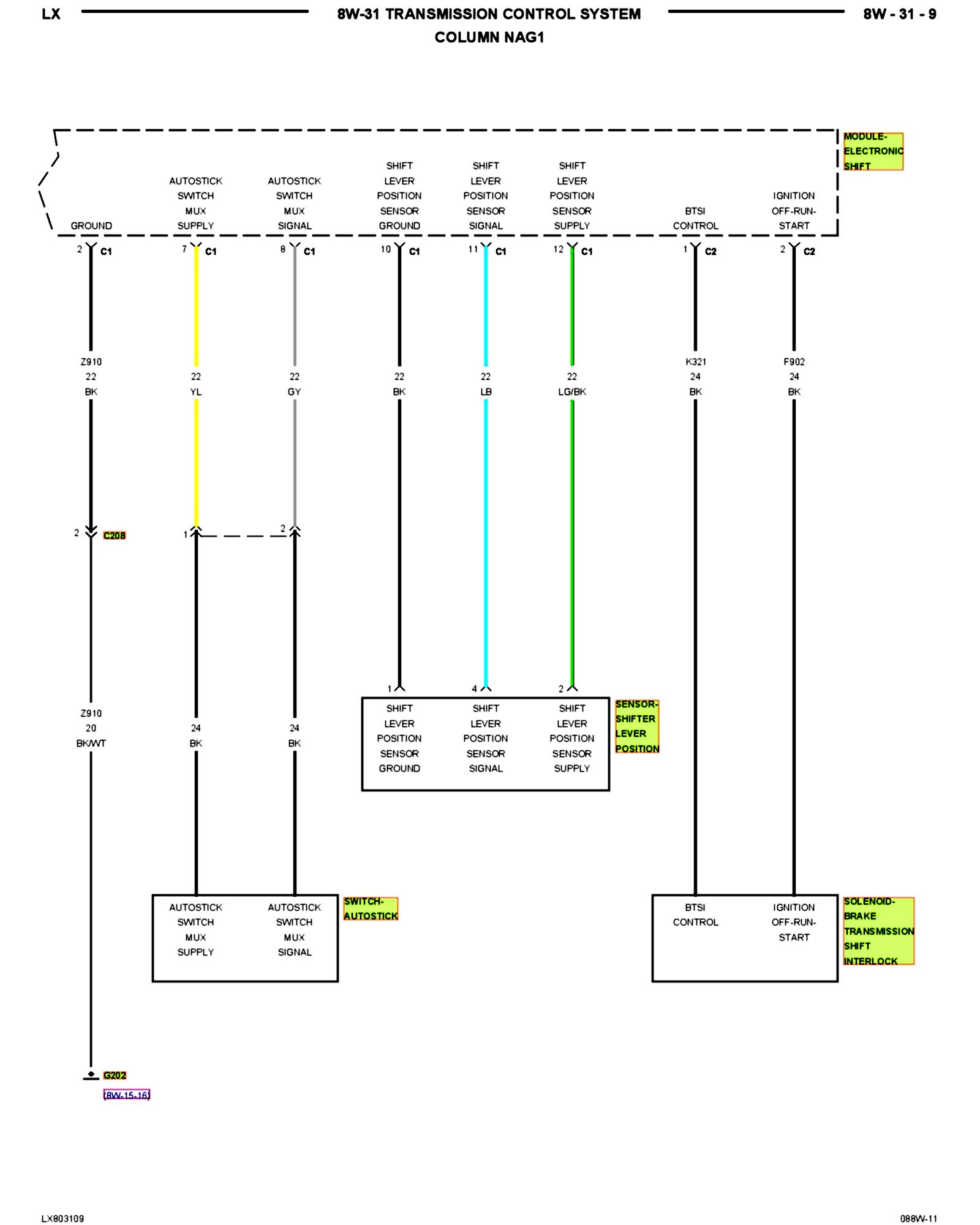

8w-31-09 (Column NAG1):
