Center Mounted Brake Lamp: Locations

Component ID: 176
Component : LAMP-CENTER HIGH MOUNTED STOP

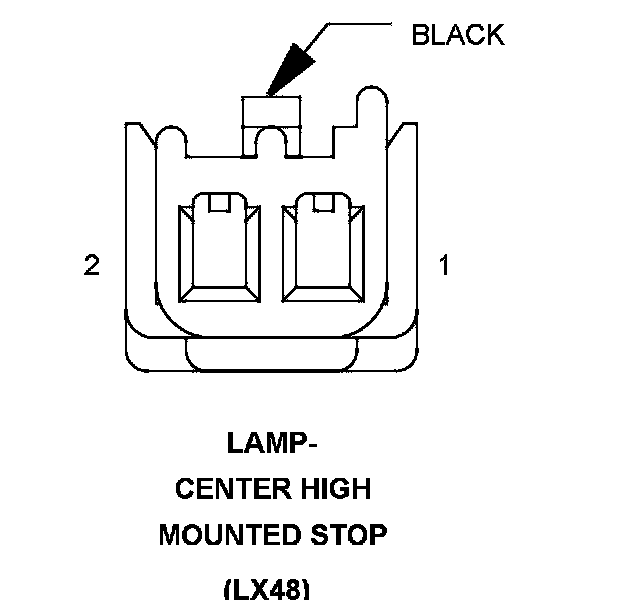

Connector:
Name : LAMP-CENTER HIGH MOUNTED STOP
Color : BLACK
# of pins : 2
Qualifier : (LX48)




Pin Circuit Description
1 Z911 20BK/WT GROUND
2 L53 20DG/WT BRAKE LAMP RELAY OUTPUT

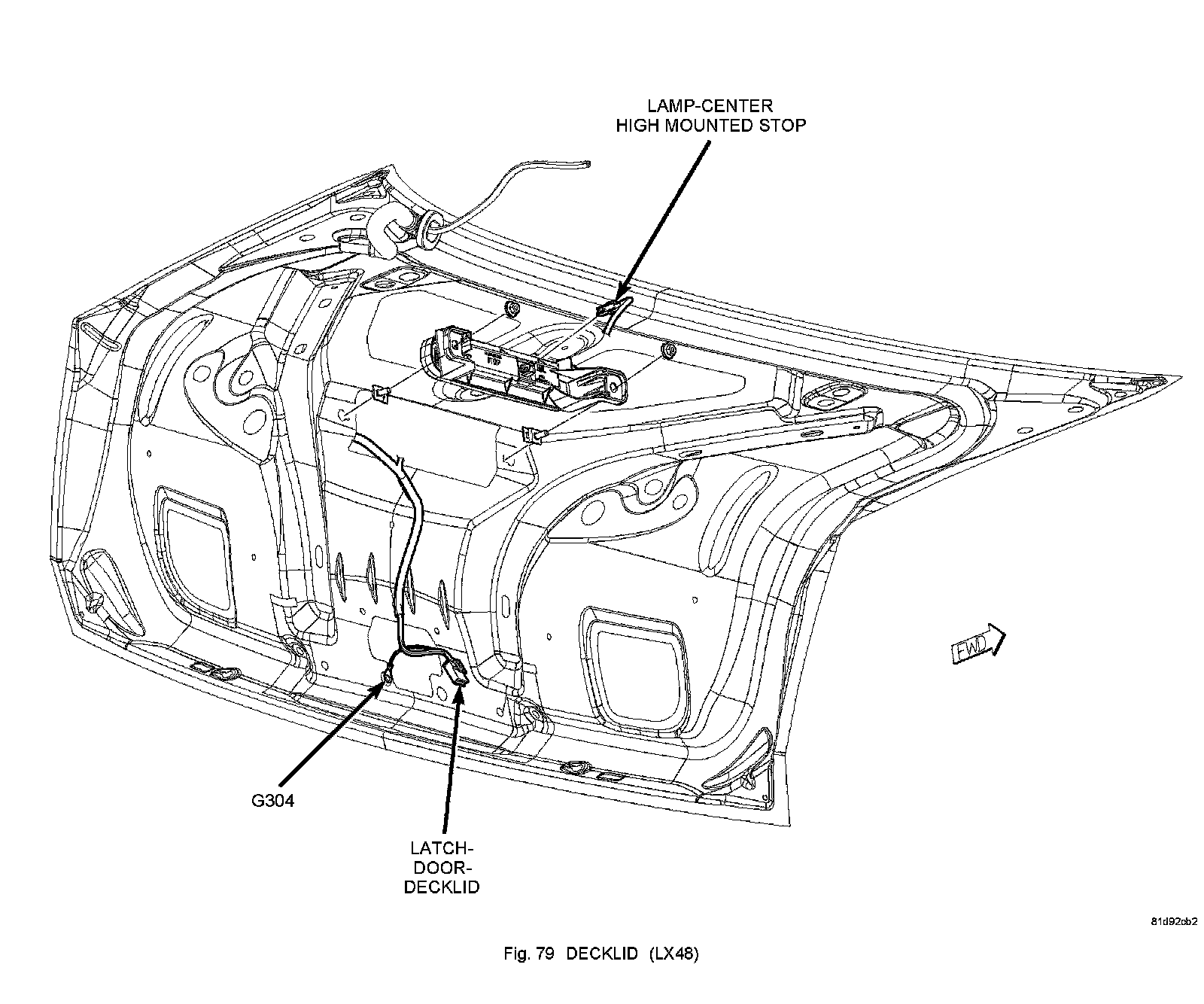

Component Location - 79




Component Location - 80






Connector:
Name : LAMP-CENTER HIGH MOUNTED STOP
Color : NATURAL
# of pins : 2
Qualifier : (LX49)




Pin Circuit Description
1 Z911 20BK/WT GROUND
2 L53 20DG/WT BRAKE LAMP RELAY OUTPUT

Component Location - 79




Component Location - 80
