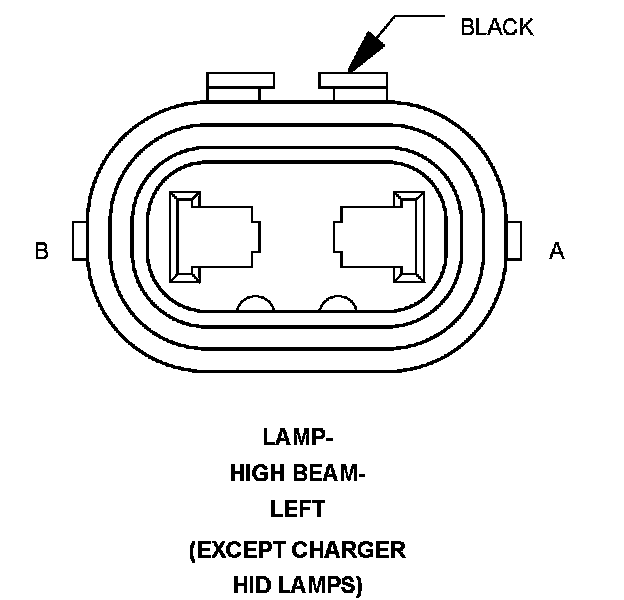

Lamp-High Beam-Left

Component ID: 194
Component : LAMP-HIGH BEAM-LEFT

Connector:
Name : LAMP-HIGH BEAM-LEFT
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT CHARGER HID LAMPS)




A L33 18WT/LG LEFT HIGH BEAM DRIVER
B Z902 18BK/LB GROUND

Component Location - 1




Component Location - 4
