Lamp-High Intensity Discharge-Left

Component ID: 196
Component : LAMP-HIGH INTENSITY DISCHARGE-LEFT

Connector:
Name : LAMP-HIGH INTENSITY DISCHARGE-LEFT
Color : DK. GRAY
# of pins : 6
Qualifier : (CHRYSLER HID LAMPS)




Pin Circuit Description
1 L43 16WT/DB LEFT LOW BEAM DRIVER
2 D205 20WT/DB SCI RECEIVE (LEFT HID LAMP)
3 Z902 18BK/LB GROUND
4 F500 20DG/PK FUSED RUN RELAY OUTPUT
5 - -
6 L13 20WT/YL HEADLAMP LEVEL SENSOR SIGNAL

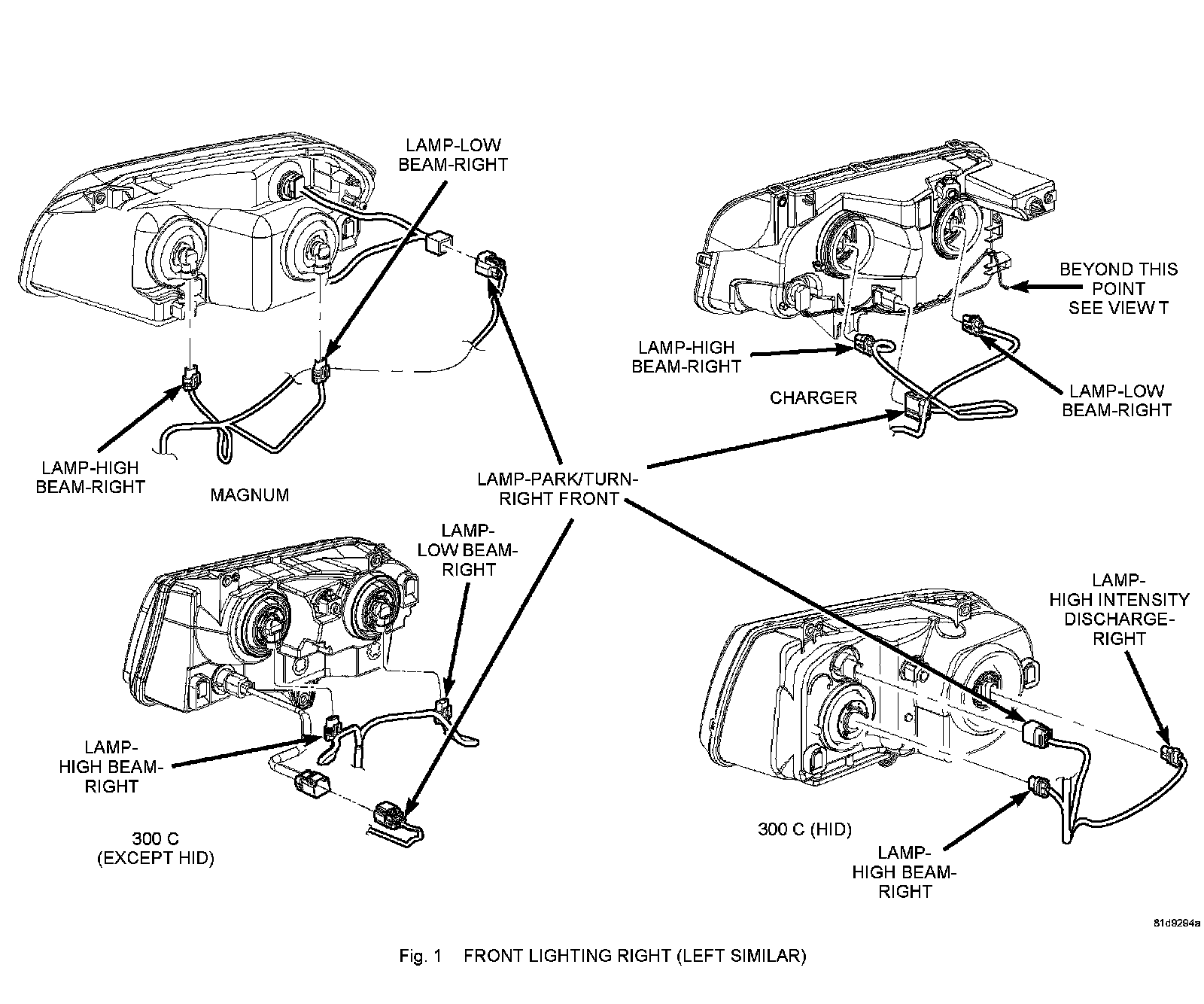

Component Location - 1
