Lamp-Low Beam-Left

Component ID: 201

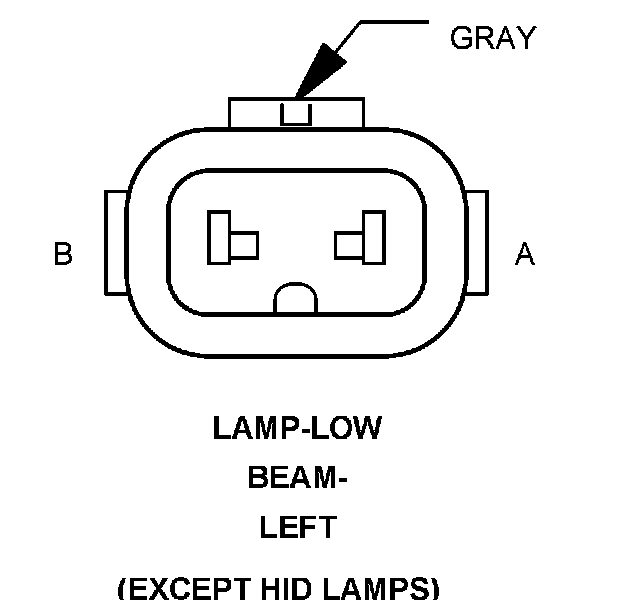

Component : LAMP-LOW BEAM-LEFT

Connector:
Name : LAMP-LOW BEAM-LEFT
Color : GRAY
# of pins : 2
Qualifier : (EXCEPT HID LAMPS)




A L43 18WT/DB LEFT LOW BEAM DRIVER
B Z902 18BK/LB GROUND

Component Location - 1




Component Location - 4
