Lamp-Low Beam-Right

Component ID: 202

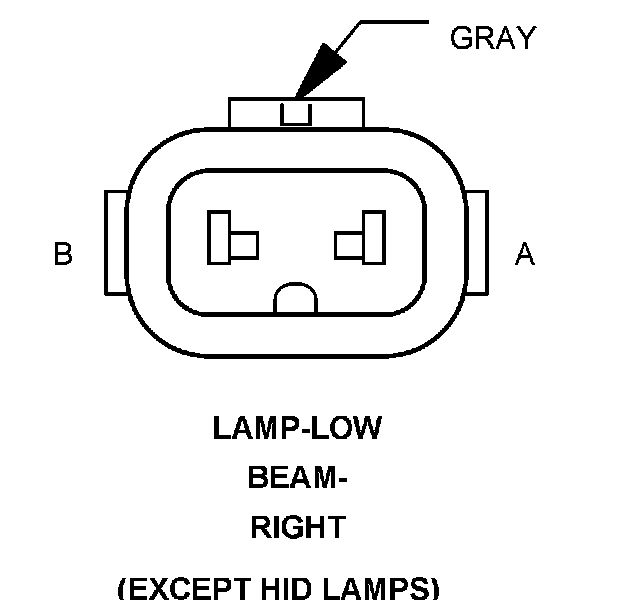

Component : LAMP-LOW BEAM-RIGHT

Connector:
Name : LAMP-LOW BEAM-RIGHT
Color : GRAY
# of pins : 2
Qualifier : (EXCEPT HID LAMPS)




A L44 18WT/TN RIGHT LOW BEAM DRIVER
B Z901 18BK/DG GROUND

Component Location - 1




Component Location - 2
