Headlamp Unit - Installation

INSTALLATION - 300C AND MAGNUM

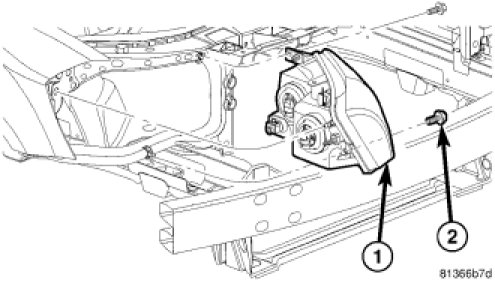

1. Position the headlamp unit in the opening in the headlamp mounting cross-member.
2. Connect the electrical connector.




3. Install the one lower headlamp unit retaining screw.

NOTE: If the fascia was loosened, reattach it Front Fascia - Installation.





4. Install the two upper retaining screws (1).
5. Connect the battery negative cable.
INSTALLATION - CHARGER






1. Position the headlamp unit in the opening in the headlamp mounting cross-member.
2. Connect the electrical connector.




3. Install the one lower headlamp unit retaining screw.




4. Install the two upper retaining screws (1).

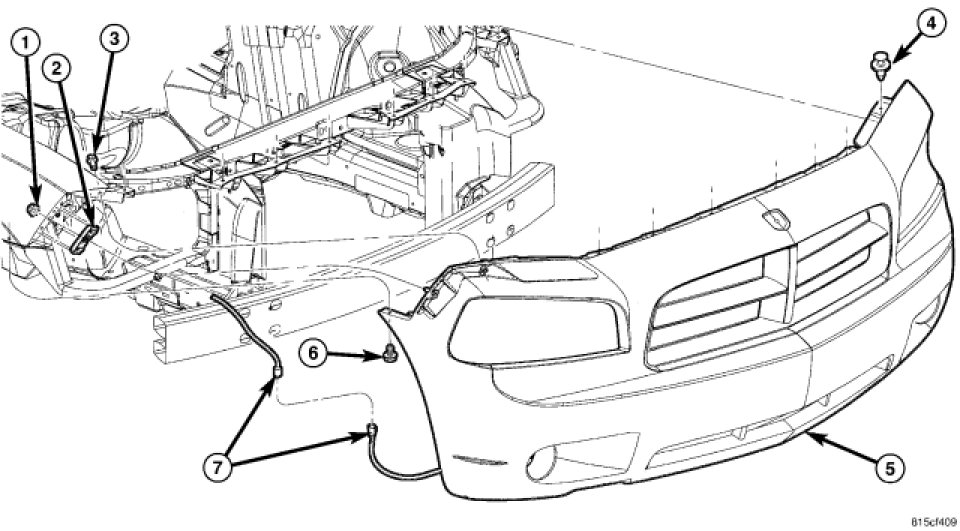

5. Install front fascia Front Fascia - Installation.
6. Connect the battery negative cable.
