Map Light: Diagrams

Component ID: 205
Component : LAMP-READING-FRONT

Connector:
Name : LAMP-READING-FRONT
Color : NATURAL
# of pins : 4




Pin Circuit Description
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 M27 20YL/LB READING/RAIL LAMPS DRIVER
4 Z909 20BK/LG GROUND

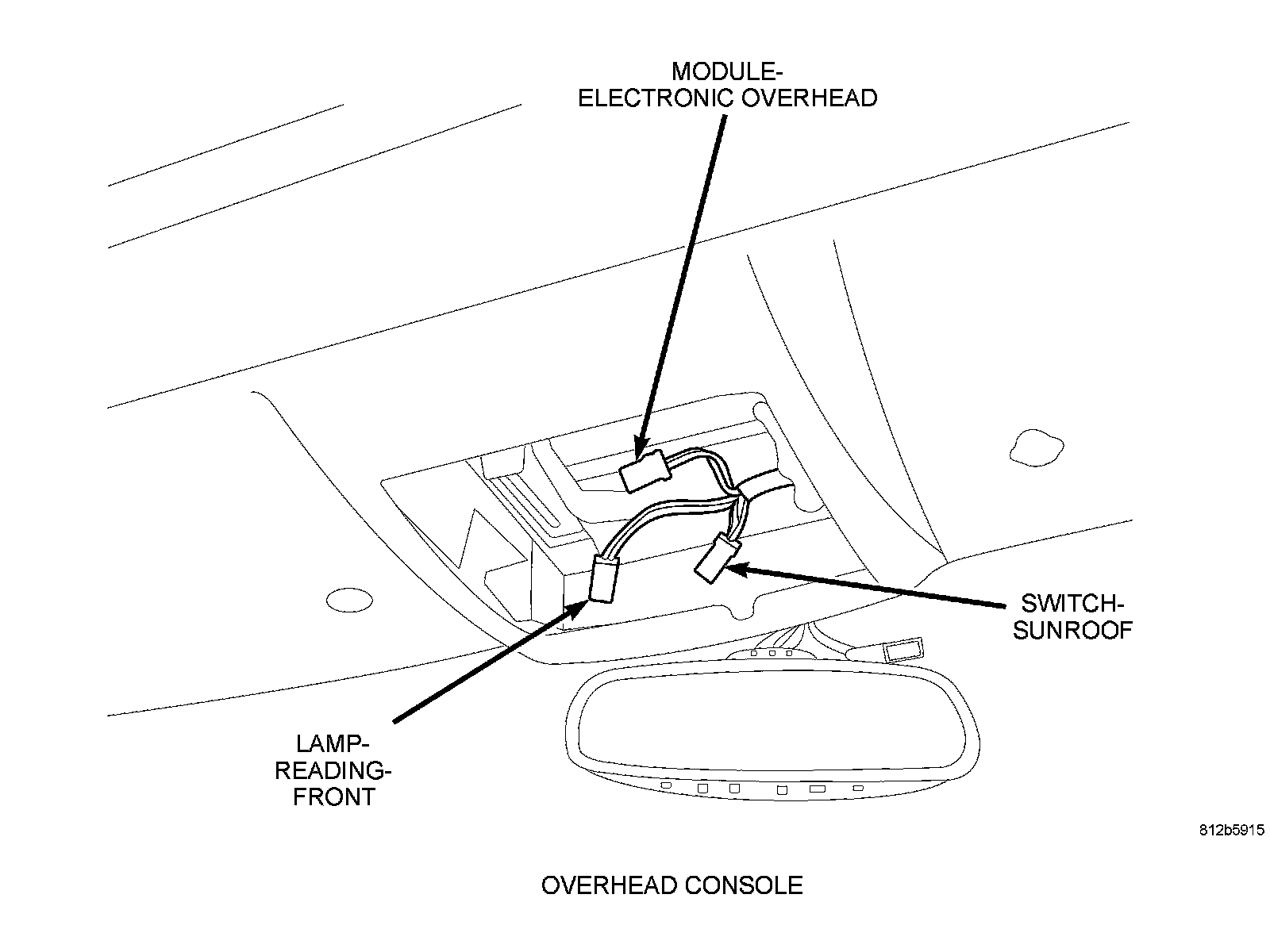

Component Location - 71
