Sensor-Wheel Speed-ABS-Rear

Component ID: 542

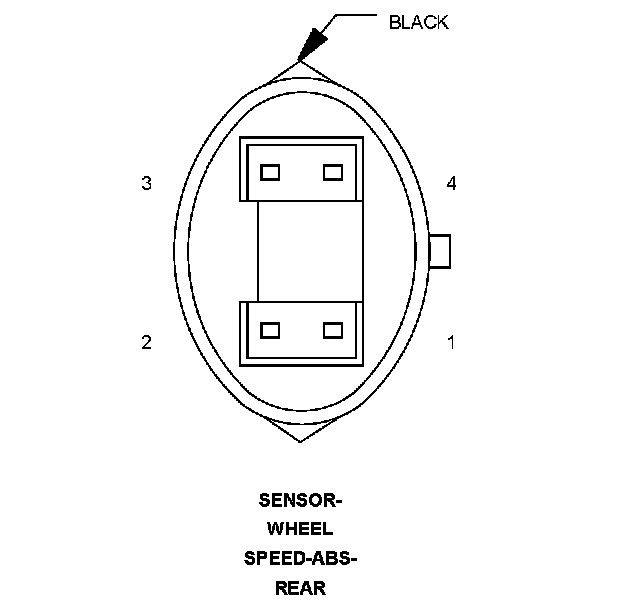

Component : SENSOR-WHEEL SPEED-ABS-REAR

Connector:
Name : SENSOR-WHEEL SPEED-ABS-REAR
Color : BLACK
# of pins : 4




Pin Circuit Description
1 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR SUPPLY
2 B1 20DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B4 20DG/GY LEFT REAR WHEEL SPEED SENSOR SUPPLY
4 B3 20DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL

Component Location - 67
