Washer Fluid Level Switch: Diagrams

Component ID: 540
Component : SENSOR-WASHER FLUID LEVEL-FRONT

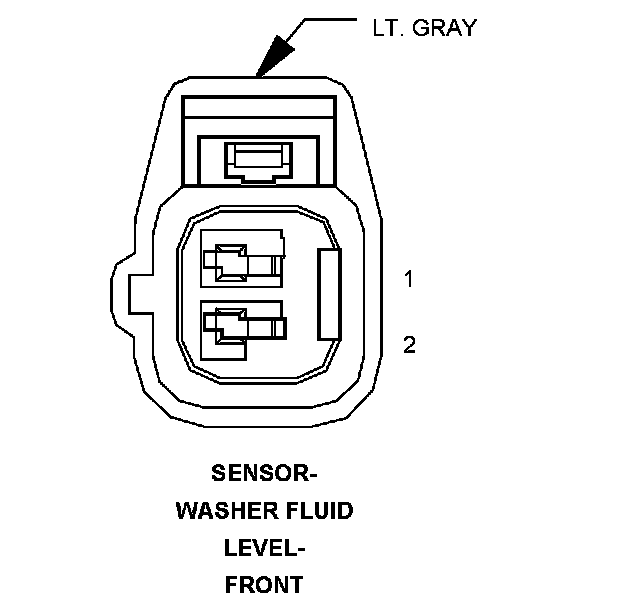

Connector:
Name : SENSOR-WASHER FLUID LEVEL-FRONT
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 Z901 20BK/DG GROUND
2 W1 20BR/TN WASHER FLUID LEVEL SWITCH SENSE

Component Location - 2
