Mirror-Outside Rearview-Passenger

Component ID: 239
Component : MIRROR-OUTSIDE REARVIEW-PASSENGER

Connector:

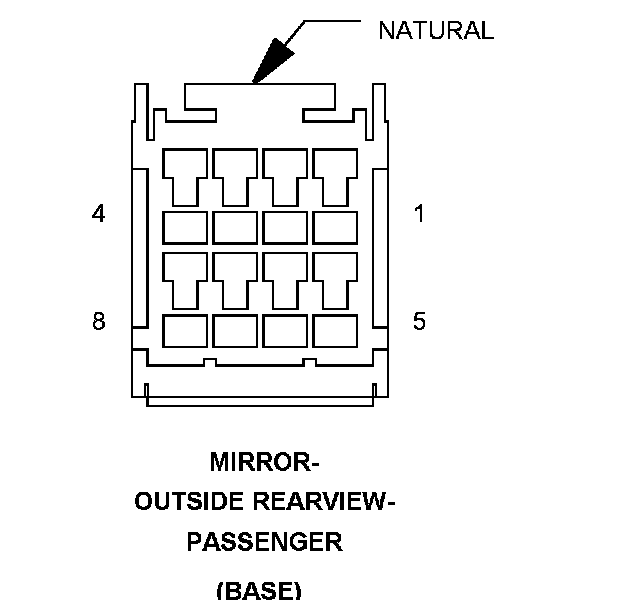

Name : MIRROR-OUTSIDE REARVIEW-PASSENGER
Color : NATURAL
# of pins : 8
Qualifier : (BASE)




Pin Circuit Description
1 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
2 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
3 P76 20TN/LB MIRROR COMMON DRIVER
4 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
5 - -
6 - -
7 - -
8 Z911 20BK/WT GROUND

Component Location - 62






Connector:
Name : MIRROR-OUTSIDE REARVIEW-PASSENGER
Color : BLACK
# of pins : 12
Qualifier : (MEMORY)




Pin Circuit Description
1 Z911 20BK/WT GROUND
2 P70 20TN/LB PASSENGER MIRROR COMMON DRIVER
3 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
5 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
6 P146 22LG/DB PASSENGER MIRROR POSITION SENSOR SUPPLY
7 P64 22TN PASSENGER MIRROR VERTICAL POSITION SIGNAL
8 P110 20LG/WT POWER FOLDING MIRROR RETURN
9 P68 22TN/YL PASSENGER MIRROR HORIZONTAL POSITION SIGNAL
10 P66 22TN/LG PASSENGER MIRROR SENSOR GROUND
11 P699 20LG/DG POWER FOLDING MIRROR DRIVER
12 - -

Component Location - 62






Connector:

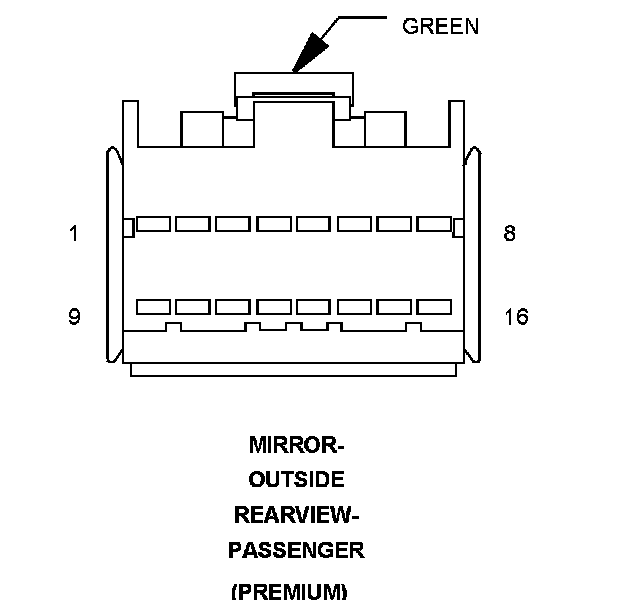

Name : MIRROR-OUTSIDE REARVIEW-PASSENGER
Color : GREEN
# of pins : 16
Qualifier : (PREMIUM)




Pin Circuit Description
1 Z911 20BK/WT GROUND
2 P70 20TN/LB PASSENGER MIRROR COMMON DRIVER
3 C110 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
4 P72 20TN/GY PASSENGER MIRROR VERTICAL DRIVER
5 P74 20TN/OR PASSENGER MIRROR HORIZONTAL DRIVER
6 P146 22LG/DB PASSENGER MIRROR POSITION SENSOR SUPPLY
7 P64 22TN PASSENGER MIRROR VERTICAL POSITION SIGNAL
8 - -
9 P68 22TN/YL PASSENGER MIRROR HORIZONTAL POSITION SIGNAL
10 P66 22TN/LG PASSENGER MIRROR SENSOR GROUND
11 - -
12 P502 22LG/DG PASSENGER TURN SIGNAL RETURN
13 M42 22OR/YL PASSENGER PUDDLE LAMP DRIVER
14 P592 22GY/TN PASSENGER TURN SIGNAL DRIVER
15 - -
16 - -

Component Location - 62
