C103

Component ID: 28
Component : C103

Connector:
Name : C103
Color : DK. GRAY
# of pins : 6
Qualifier : (LX48)
Gender : FEMALE




Pin Circuit Description
1 Z901 20BK/DG GROUND
Pin Circuit Description
1 Z901 18BK/DG GROUND
2 Z902 20BK/LB GROUND
2 Z902 18BK/LB GROUND
3 L777 18WT/VT PARK LAMP CONTROL OUTPUT
4 F500 20DG/PK FUSED RUN RELAY OUTPUT
5 L89 18WT/YL FRONT FOG LAMP CONTROL OUTPUT
6 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN

Component Location - 2




Component Location - 3

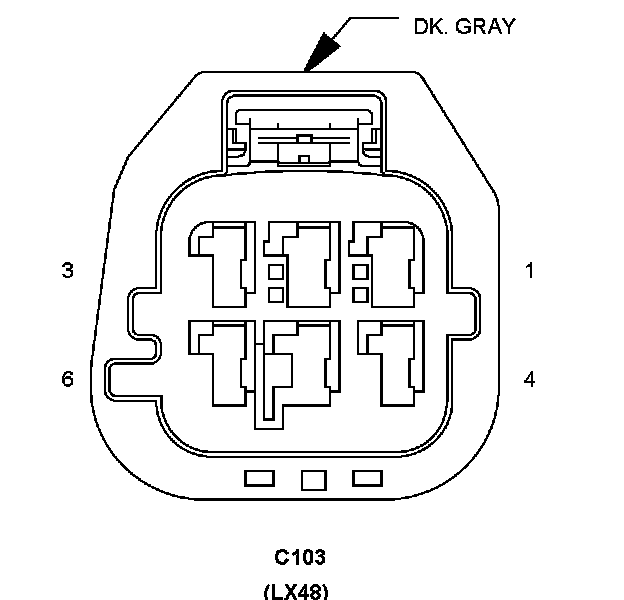

Connector:
Name : C103
Color : DK. GRAY
# of pins : 6
Qualifier : (LX48)
Gender : MALE




Pin Circuit Description
1 Z901 20BK/TN GROUND
2 Z902 20BK/BR GROUND
3 L777 20WT/VT PARK LAMP CONTROL OUTPUT
4 F500 20DG/PK FUSED RUN RELAY OUTPUT
5 L89 20WT/YL FRONT FOG LAMP CONTROL OUTPUT
6 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN

Component Location - 2




Component Location - 3
