Injector-Fuel 2

Component ID: 166
Component : INJECTOR-FUEL 2

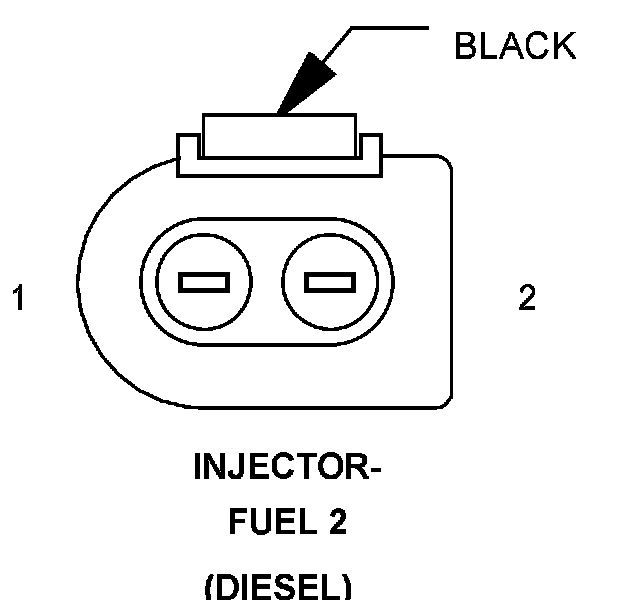

Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K612 16BK/VT INJECTOR 2 LOW-SIDE CONTROL
2 K12 16BL/VT INJECTOR 2 HIGH-SIDE CONTROL

Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 30






Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K12 20BR/DB INJECTOR 2 CONTROL
2 K343 16BR/YL FUSED ASD RELAY OUTPUT

Component Location - 17




Component Location - 24




Component Location - 27




Component Location - 30
