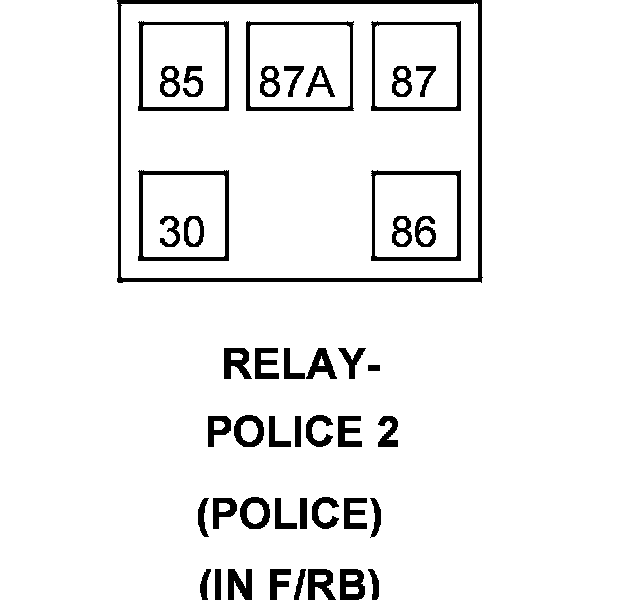

Relay-Police 2

Component ID: 308
Component : RELAY-POLICE 2

Connector:
Name : RELAY-POLICE 2
Color :
# of pins : 5
Qualifier : (POLICE)




30 F5 16WT/YL FUSED B(+)
85 Z911 20BK/WT GROUND
86 F880 22PK/DG FUSED ACCESSORY DELAY RELAY OUTPUT
87 F102 16WT/PK POLICE 2 RELAY OUTPUT
87A - -
