Motor-Seat Adjuster-Passenger Recliner

Component ID: 278

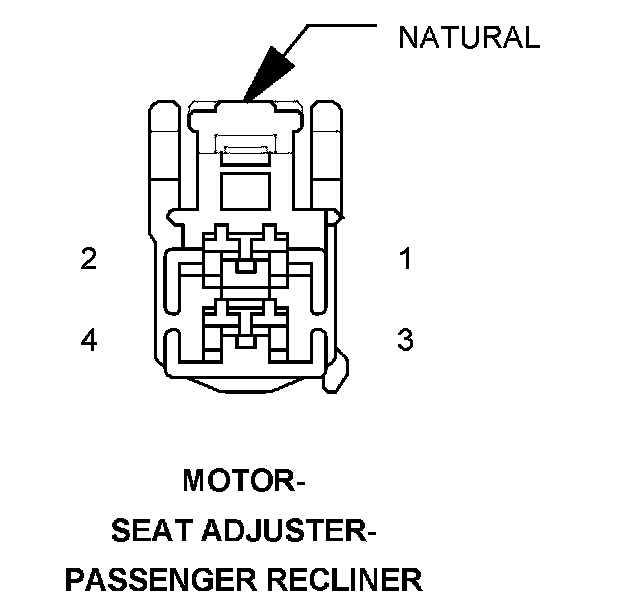

Component : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER

Connector:
Name : MOTOR-SEAT ADJUSTER-PASSENGER RECLINER
Color : NATURAL
# of pins : 4




Pin Circuit Description
1 P44 18LG/VT PASSENGER SEAT RECLINER UP DRIVER
2 P42 18LG/GY PASSENGER SEAT RECLINER DOWN DRIVER
3 - -
4 - -
